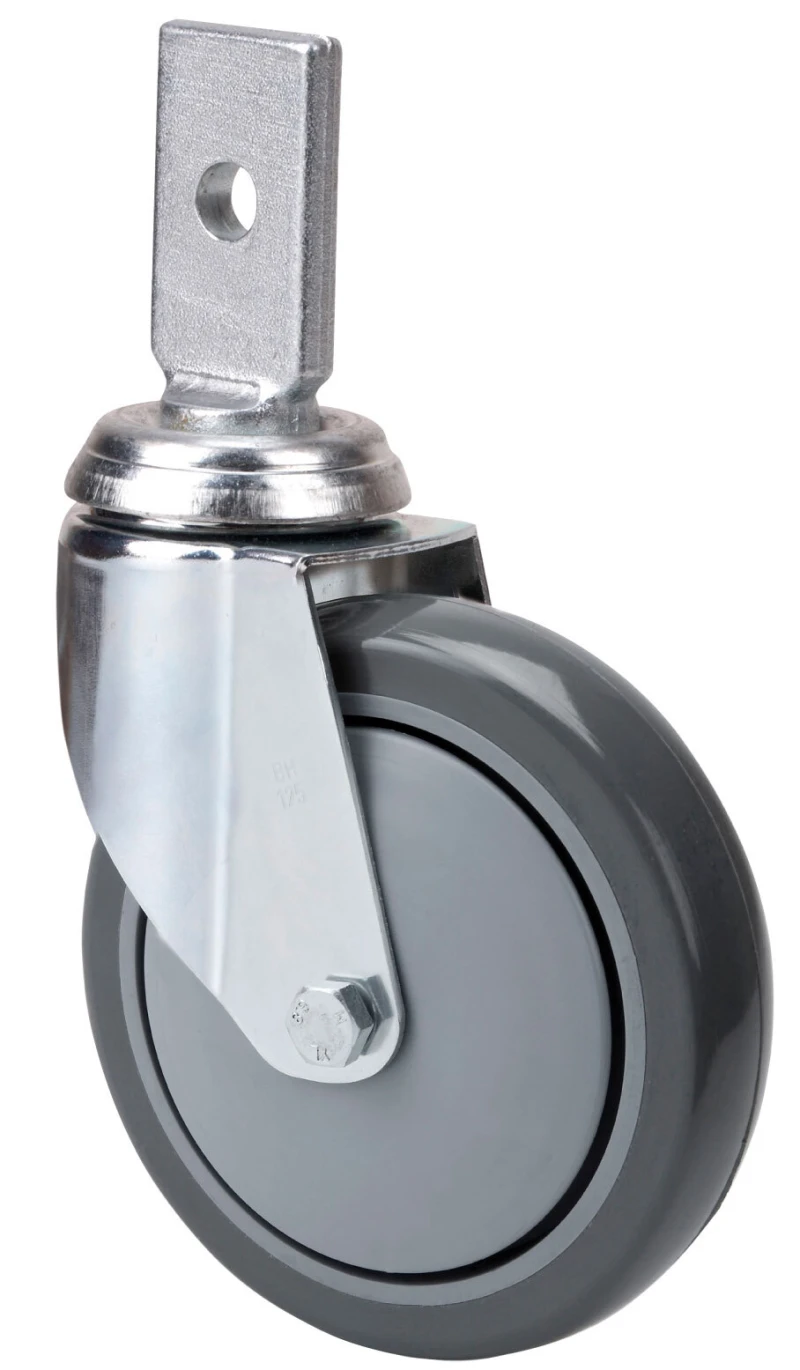

Code: 2-3506
Injected polyurethane castors. Especially indicated to support high-loads up to 90 Kg.
Our range of M-PU SERIE castors is recommended for the the medium-load sectors.
It is used in: supermarkets, superstores, carts for heavy duty works and shopping malls.
PU: long useful life. Noiseless, clean and undeformable.
Components
Brackets
Made of pressed steel of 2 mm. Double ball bearing swivel head. Finish: zinc-plated. Manufactured to European standards EN 12530.
Wheel
Grey polyurethane tyre on polypropylene centre.95º shore A
Temperature range: -25º ÷ +80º
Rolling Resistence
Very Good
Noise during the march
Good
Floor Protection
Very Good

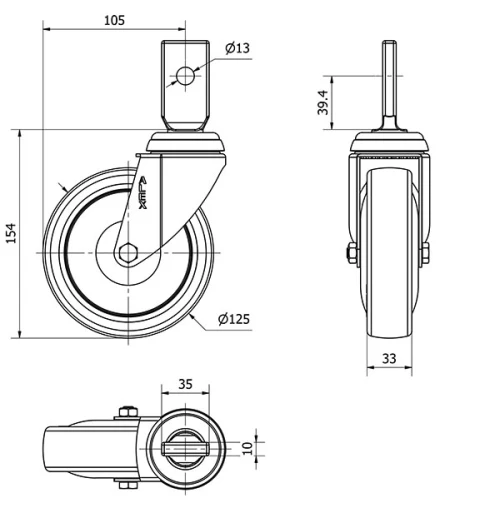

Technical Data 2-3506
EAN:
8422202235066
Housing Type:
Swivel
Fitting Type:
Expander
Braking System:
Without Brake
Material:
Polyurethane
Hardness of tread:
55º-60º SHORE D
Bearing:
Ball
Diameter (mm):
125
Width of tyre (mm):
32
Plate hole diameter (mm):
12
Offset (mm):
105
Overall height (mm):
154
Load:
90
Unit Weight of the wheel (kg):
0,96
Volume (cm3):
1256
