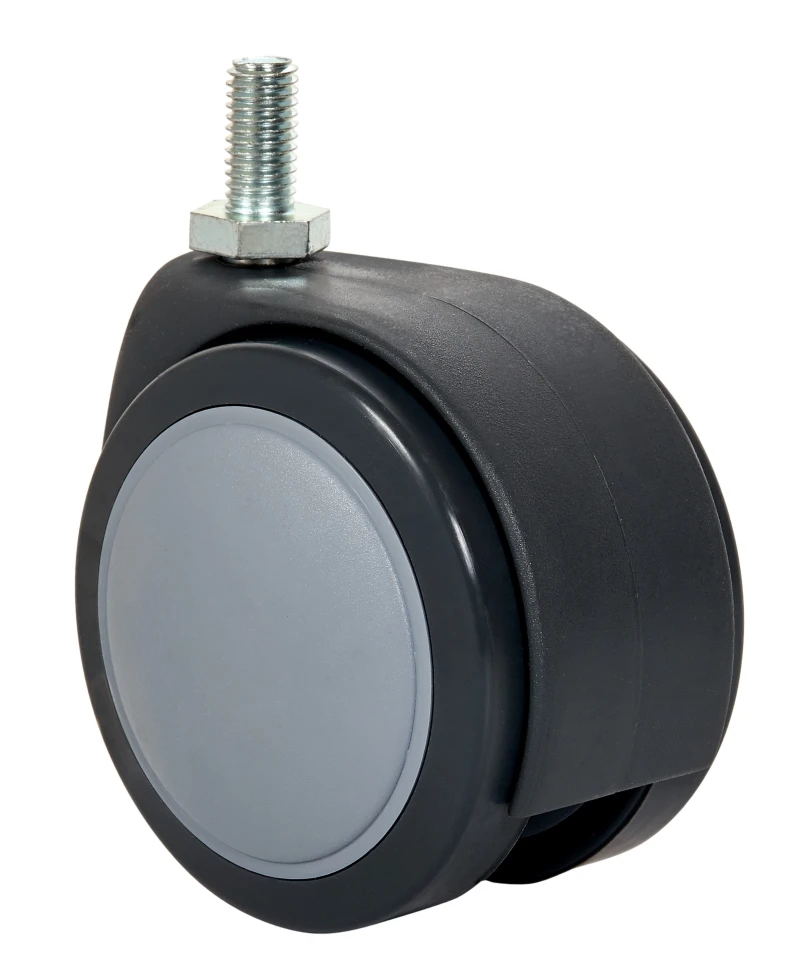

DKG SERIES-PU 4-1083

Code: 4-1083

Grey polyurethane caster wheels, specially designed to support loads of up to 80 kg.

They are commonly used in display counters, bookstores, offices, fashion retail stores, beauty and hairdressing equipment, office chairs, stools, coat racks, photocopiers, woodworking and cabinetmaking applications, hospital equipment, healthcare and clinical furniture, IV stands, drip poles, and bed bases.

PU (Polyurethane): highly durable and wear-resistant. Quiet-running, non-marking, easy to clean, and resistant to deformation.

Accessories Fittings for DKG series

Components

Brackets

Polyamide housing designed to accommodate twin wheels. Mounting options: top plate, plain stem, and threaded stem. Grey polyurethane tread. Wheel diameter: 77 mm. Available with or without brake.

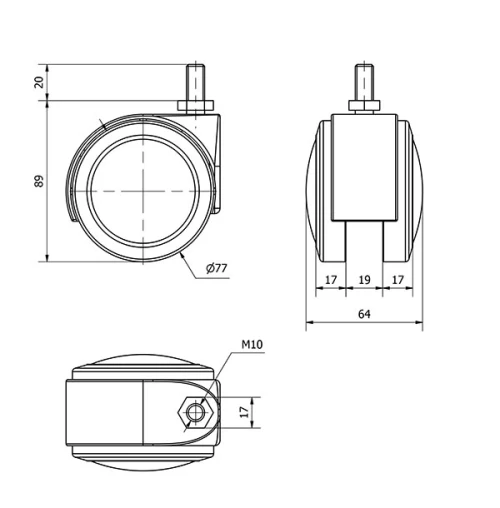

Technical Data 4-1083

EAN:

8422202410838

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Without Brake

Material:

Polyamide

Bearing:

Plain

Diameter (mm):

Width x height of stem:

10x20

Overall height (mm):

Load:

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-1084
