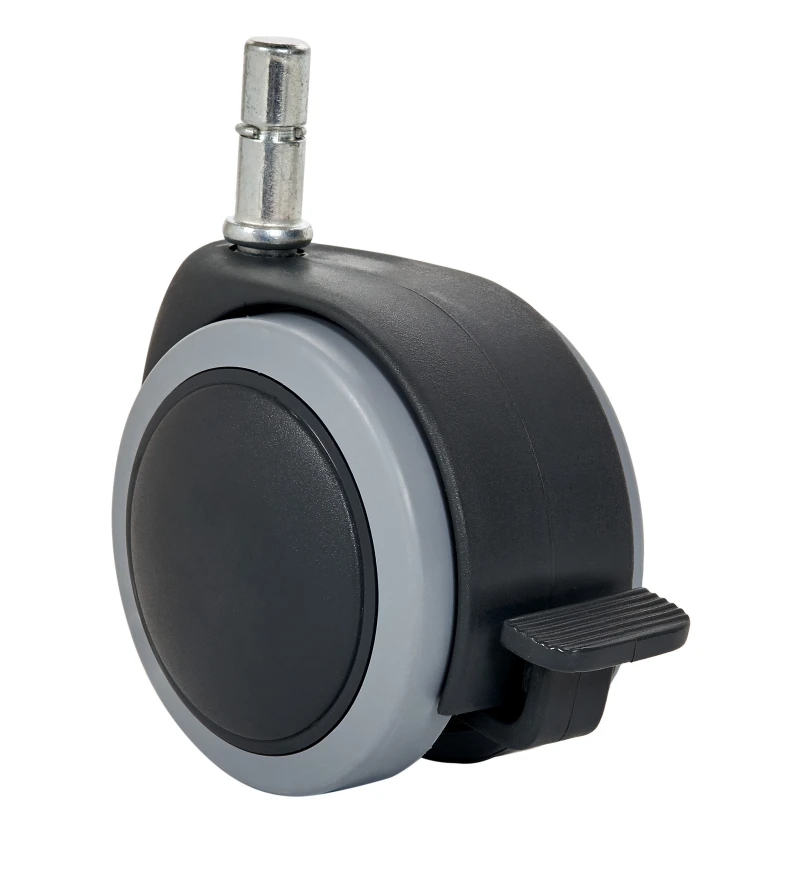

DKG SERIES-TPR 4-1232

Code: 4-1232

Thermoplastic rubber wheels. Especially suitable for supporting loads of up to 60 kg.

Commonly used in counters, bookcases, offices, fashion stores, beauty and hairdressing equipment, office chairs, stools, coat racks, photocopiers, joinery and woodworking applications, hospital equipment, clinical and healthcare furniture, IV stands, drip poles, and bed bases.

TPR: High load-bearing capacity. Lightweight and durable.

Accessories Fittings for DKG series

Components

Brackets

Polyamide housing designed to accommodate twin wheels. Mounting options: plain stem and threaded stem. Grey polypropylene finish. Wheel diameter: 77 mm. Available with or without brake.

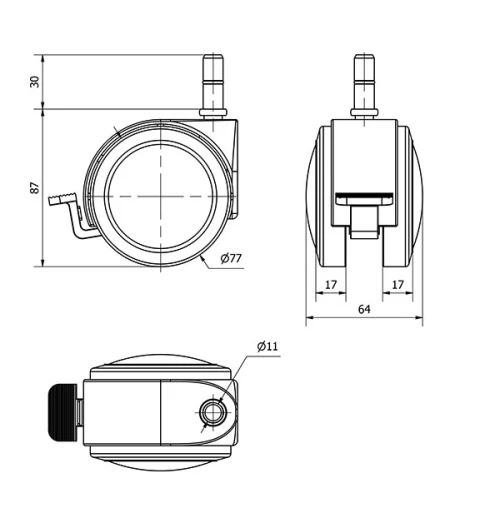

Technical Data 4-1232

EAN:

8422202412320

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Wheel Brake

Material:

Polyamide

Bearing:

Plain

Diameter (mm):

Width x height of stem:

11x30

Overall height (mm):

Load:

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-1016
