DKG SERIES-TPR 4-1672

Code: 4-1672

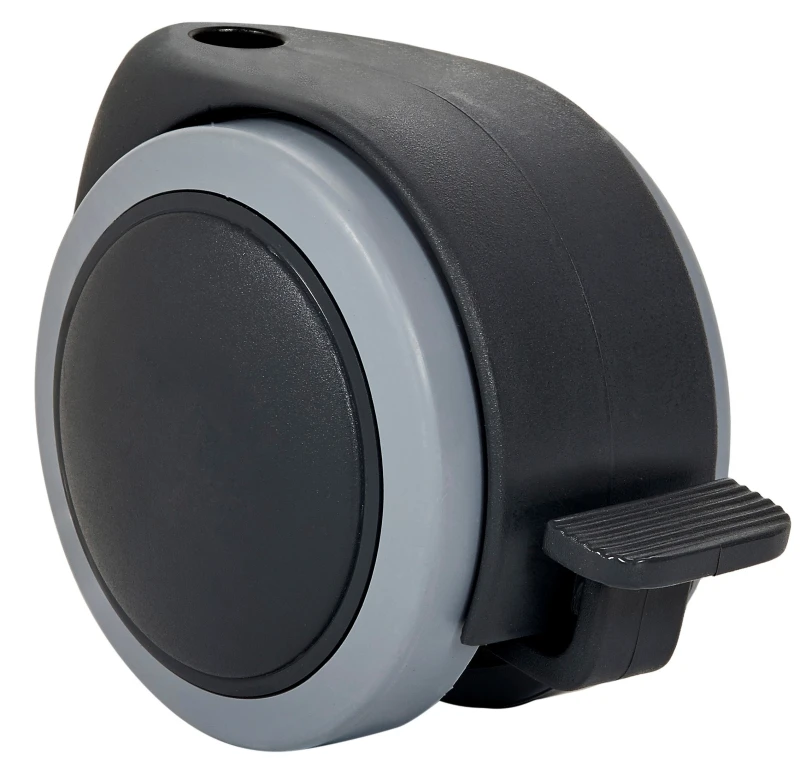

Thermoplastic rubber wheels. Especially suitable for supporting loads of up to 60 kg.

Commonly used in counters, bookcases, offices, fashion stores, beauty and hairdressing equipment, office chairs, stools, coat racks, photocopiers, joinery and woodworking applications, hospital equipment, clinical and healthcare furniture, IV stands, drip poles, and bed bases.

TPR: High load-bearing capacity. Lightweight and durable.

Accessories Fittings for DKG series

Components

Brackets

Polyamide housing designed to accommodate twin wheels. Mounting options: plain stem and threaded stem. Grey polypropylene finish. Wheel diameter: 77 mm. Available with or without brake.

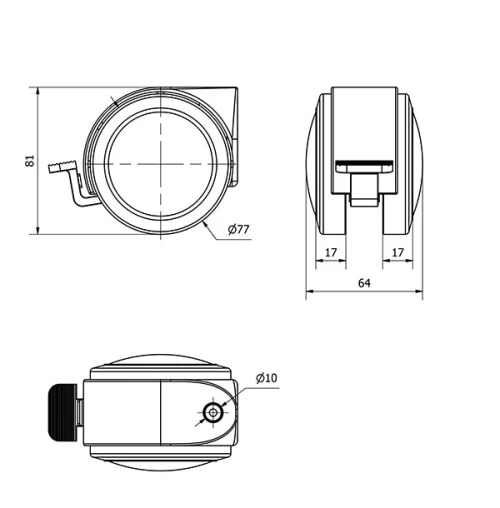

Technical Data 4-1672

EAN:

8422202416724

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake

Material:

Polyamide

Bearing:

Plain

Color:

Gray

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Overall height (mm):

81,5

Load:

Stem Mounting:

1-0247, 1-0261

Plate Mounting:

1-0572
