Ruedas Alex

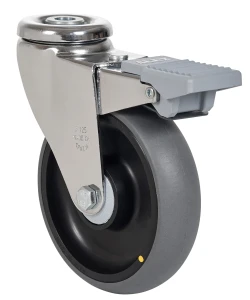

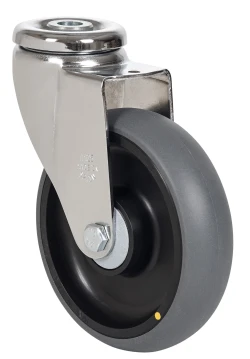

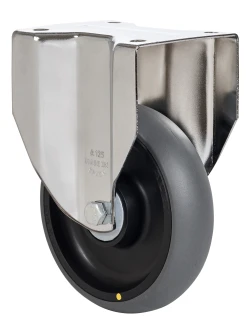

Conductive grey polyurethane castors. Especially indicated to support high-loads up to 100 Kg.

It is used in: operating rooms, hopitals, beds, food industry and stretchers.

PGC: does not leave marks on floor. Smooth and noiseless castor. Conductive.

A SERIES-PGC (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1578 80 80 32 Bearing: Ball 107x86 86/80x60 8 119 83
2-0508 100 100 32 Bearing: Ball 107x86 86/80x60 8 142 94
2-0560 125 125 32 Bearing: Ball 107x86 86/80x60 8 168 112
2-0584 150 125 32 Bearing: Ball 107x86 86/80x60 8 193 131

A SERIES-PGC (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1588 80 80 32 Bearing: Ball 107x86 80x60 8 119 --
2-0509 100 100 32 Bearing: Ball 107x86 80x60 8 142 --
2-0561 125 125 32 Bearing: Ball 107x86 80x60 8 168 --
2-0585 150 125 32 Bearing: Ball 107x86 80x60 8 193 --

A SERIES-PGC (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0510 100 100 32 Bearing: Ball 107x86 86/80x60 8 142 94
2-0562 125 125 32 Bearing: Ball 107x86 86/80x60 8 168 112
2-0586 150 125 32 Bearing: Ball 107x86 86/80x60 8 193 131

A SERIES-PGC (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-1592 80 80 32 Bearing: Ball -- -- 12 113 83
2-0511 100 100 32 Bearing: Ball -- -- 12 137 94
2-0565 125 125 32 Bearing: Ball -- -- 12 162 112
2-0587 150 125 32 Bearing: Ball -- -- 12 187 131

A SERIES-PGC (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-0512 100 100 32 Bearing: Ball -- -- 12 137 94
2-0566 125 125 32 Bearing: Ball -- -- 12 162 112
2-0588 150 125 32 Bearing: Ball -- -- 12 187 131

Other castors SERIE A

SERIE A-PGAIB
Diametro 100-150 mm
Carga 100-125 kg
SERIE A-PGAIB (AH PEQ)
Diametro 80-150 mm
Carga 80-125 kg
SERIE A-PGA
Diametro 80-200 mm
Carga 80-125 kg
SERIE A-PGC
Diametro 100-150 mm
Carga 100-125 kg
SERIE A-PU
Diametro 100-150 mm
Carga 100-125 kg
SERIE A-PU (AH PEQ)
Diametro 80-150 mm
Carga 80-125 kg
