Which castors do you need?

SERIE A-PGA

Categories

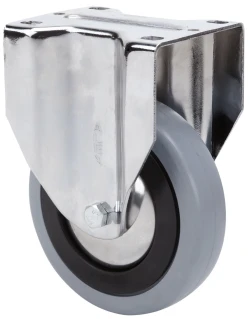

Castors with polypropylene centre and grey rubber tyre. Especially indicated to support high-loads up to 100 Kg.

It is used in: operating rooms, beds and catering (kitchens, etc).

PGA: Does not leave marks on floor. Smooth and noiseless castor.

See comparative

A SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1486 80 80 32 Bearing: Plain 107x86 86/80x60 8 119 83
2-1422 80 80 32 Bearing: Ball 107x86 86/80x60 8 119 83
2-0259 100 100 32 Bearing: Plain 107x86 86/80x60 8 142 94
2-1126 100 85 32 Bearing: Ball 107x86 86/80x60 8 142 94
2-0188 125 125 32 Bearing: Plain 107x86 86/80x60 8 168 112
2-1127 125 125 32 Bearing: Ball 107x86 86/80x60 8 168 112
2-1227 150 125 32 Bearing: Plain 107x86 86/80x60 8 193 131
2-1231 150 125 32 Bearing: Ball 107x86 86/80x60 8 193 131
2-1565 200 125 32 Bearing: Ball 107x86 86/80x60 8 243 157

A SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1421 80 80 32 Bearing: Plain 107x86 80x60 8 119 --
2-1423 80 80 32 Bearing: Ball 107x86 80x60 8 119 --
2-0260 100 100 32 Bearing: Plain 107x86 80x60 8 142 --
2-1130 100 100 32 Bearing: Ball 107x86 80x60 8 142 --
2-0189 125 125 32 Bearing: Plain 107x86 80x60 8 168 --
2-1131 125 125 32 Bearing: Ball 107x86 80x60 8 168 --
2-1230 150 125 32 Bearing: Plain 107x86 86/80x60 8 193 --
2-1234 150 125 32 Bearing: Ball 107x86 86/80x60 8 193 --

A SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1208 100 100 32 Bearing: Plain 107x86 86/80x60 8 142 94
2-1209 100 100 32 Bearing: Ball 107x86 86/80x60 8 142 94
2-0656 125 125 32 Bearing: Plain 107x86 86/80x60 8 168 112
2-1129 125 125 32 Bearing: Ball 107x86 86/80x60 8 168 112
2-1229 150 125 32 Bearing: Plain 107x86 86/80x60 8 193 131
2-1233 150 125 32 Bearing: Ball 107x86 86/80x60 8 193 131
2-1566 200 125 32 Bearing: Ball 107x86 86/80x60 8 243 157

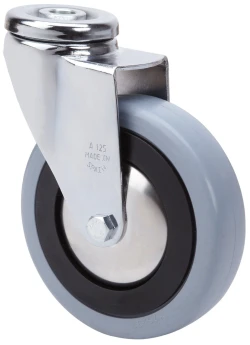

A SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-1424 80 80 32 Bearing: Plain -- -- 12 113 83
2-1425 80 80 32 Bearing: Ball -- -- 12 113 83
2-0265 100 100 32 Bearing: Plain -- -- 12 137 94
2-1132 100 100 32 Bearing: Ball -- -- 12 137 94
2-0267 125 125 32 Bearing: Plain -- -- 12 162 112
2-1133 125 125 32 Bearing: Ball -- -- 12 162 112
2-1235 150 125 32 Bearing: Plain -- -- 12 187 131
2-1238 150 125 32 Bearing: Ball -- -- 12 187 131
2-1567 200 125 32 Bearing: Ball -- -- 12 235 157

A SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-1210 100 100 32 Bearing: Plain -- -- 12 137 94
2-1211 100 100 32 Bearing: Ball -- -- 12 137 94
2-0660 125 125 32 Bearing: Plain -- -- 12 162 112
2-1135 125 125 32 Bearing: Ball -- -- 12 162 112
2-1237 150 125 32 Bearing: Plain -- -- 12 187 131
2-1240 150 125 32 Bearing: Ball -- -- 12 187 131
2-1568 200 125 32 Bearing: Ball -- -- 12 235 157

Other castors SERIE A

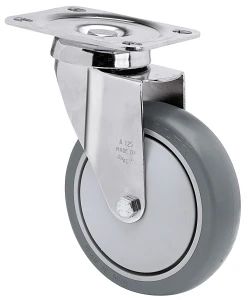

SERIE A-PGAIB
SERIE A-PGAIB
Diametro 100-150 mm
Carga 100-125 kg

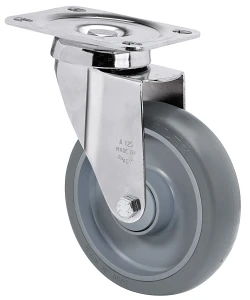

SERIE A-PGAIB (AH PEQ)
SERIE A-PGAIB (AH PEQ)
Novedad
Diametro 80-150 mm
Carga 80-125 kg
SERIE A-PGC
SERIE A-PGC
Diametro 100-150 mm
Carga 100-125 kg

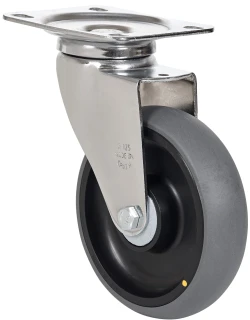

SERIE A-PGC (AH PEQ)
SERIE A-PGC (AH PEQ)
Novedad
Diametro 80-150 mm
Carga 80-125 kg
SERIE A-PU
SERIE A-PU
Diametro 100-150 mm
Carga 100-125 kg
SERIE A-PU (AH PEQ)
SERIE A-PU (AH PEQ)
Novedad
Diametro 80-150 mm
Carga 80-125 kg
