Which castors do you need?
A SERIES-PGA 2-1422
EAN 8422202214221
Castors with polypropylene centre and grey rubber tyre. Especially indicated to support high-loads up to 100 Kg.
It is used in: operating rooms, beds and catering (kitchens, etc).
PGA: Does not leave marks on floor. Smooth and noiseless castor.

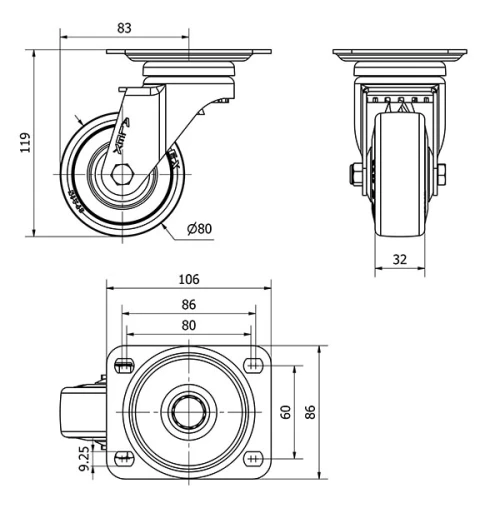

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 80 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 107x86 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 83 |
Overall height (mm) | 119 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.886 |
Volume (cm3) | 1397 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2.5 mm.Finish: zinc-chromatised.Double ball bearing with hardened races swivel head.Manufactured to European standards EN 12530.
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
