Which castors do you need?

SERIE A-PU (AH PEQ)

Categories

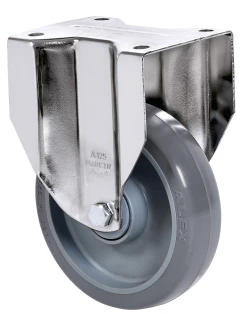

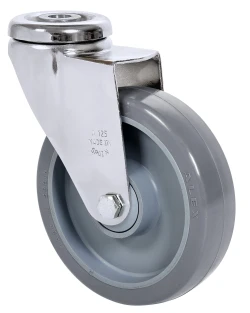

Injected polyurethane castors. Especially indicated to support high-loads ups to 125 Kg.

It is used in: food industry.

PU: long useful life. Noiseless, clean and undeformable.

See comparative

A SERIES-PU (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5179 80 80 32 Bearing: Ball 107x86 86/80x60 8 119 83
New
2-5274 100 100 32 Bearing: Ball 107x86 86/80x60 8 142 94
New
2-5291 125 125 32 Bearing: Ball 107x86 86/80x60 8 168 112
New
2-0490 150 125 32 Bearing: Ball 107x86 86/80x60 8 193 131
New

A SERIES-PU (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5180 80 80 32 Bearing: Ball 107x86 80x60 8 119 --
New
2-5275 100 100 32 Bearing: Ball 107x86 80x60 8 142 --
New
2-5292 125 125 32 Bearing: Ball 107x86 80x60 8 168 --
New
2-0491 150 125 32 Bearing: Ball 107x86 80x60 8 193 --
New

A SERIES-PU (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5277 100 100 32 Bearing: Ball 107x86 86/80x60 8 142 94
New
2-5294 125 125 32 Bearing: Ball 107x86 86/80x60 8 168 112
New
2-0499 150 125 32 Bearing: Ball 107x86 86/80x60 8 193 131
New

A SERIES-PU (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-5181 80 80 32 Bearing: Ball -- -- 12 113 83
New
2-5276 100 100 32 Bearing: Ball -- -- 12 137 94
New
2-5293 125 125 32 Bearing: Ball -- -- 12 162 112
New
2-0500 150 125 32 Bearing: Ball -- -- 12 187 131
New

A SERIES-PU (AH PEQ)

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-5278 100 100 32 Bearing: Ball -- -- 12 137 94
New
2-5295 125 125 32 Bearing: Ball -- -- 12 162 112
New
2-0501 150 125 32 Bearing: Ball -- -- 12 187 131
New

Other castors SERIE A

SERIE A-PGAIB
SERIE A-PGAIB
Diametro 100-150 mm
Carga 100-125 kg
SERIE A-PGAIB (AH PEQ)
SERIE A-PGAIB (AH PEQ)
Novedad
Diametro 80-150 mm
Carga 80-125 kg
SERIE A-PGA
SERIE A-PGA
Diametro 80-200 mm
Carga 80-125 kg
SERIE A-PGC
SERIE A-PGC
Diametro 100-150 mm
Carga 100-125 kg
SERIE A-PGC (AH PEQ)
SERIE A-PGC (AH PEQ)
Novedad
Diametro 80-150 mm
Carga 80-125 kg
SERIE A-PU
SERIE A-PU
Diametro 100-150 mm
Carga 100-125 kg
