A SERIES-PU (AH PEQ) 2-5295

See comparative

Code: 2-5295

Injected polyurethane castors. Especially indicated to support high-loads ups to 125 Kg.

It is used in: food industry.

PU: long useful life. Noiseless, clean and undeformable.

Components

Brackets

Made of pressed steel up to 2.5 mm. Finish: zinc-chromatised. Double ball bearing with hardened races swivel head. Manufactured to European standards EN 12530.

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

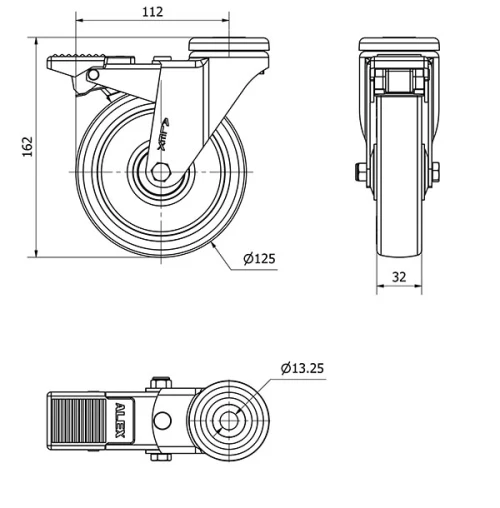

Technical Data 2-5295

EAN:

8422202252957

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

60º SHORE D

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

112

Overall height (mm):

162

Load:

125

Unit Weight of the wheel (kg):

0,96

Volume (cm³):

1565
