A SERIES-PGA 2-1208

See comparative

Code: 2-1208

Castors with polypropylene centre and grey rubber tyre. Especially indicated to support high-loads up to 100 Kg.

It is used in: operating rooms, beds and catering (kitchens, etc).

PGA: Does not leave marks on floor. Smooth and noiseless castor.

Components

Brackets

Made of pressed steel up to 2.5 mm.Finish: zinc-chromatised.Double ball bearing with hardened races swivel head.Manufactured to European standards EN 12530.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

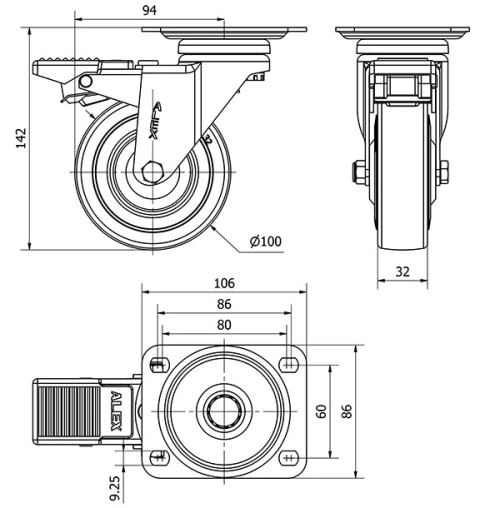

Technical Data 2-1208

EAN:

8422202212081

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

80-85º SHORE A

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

107x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

142

Load:

100

Unit Weight of the wheel (kg):

1,178

Volume (cm³):

2155
