HC SERIES-PGAIB 2-4641

Code: 2-4641

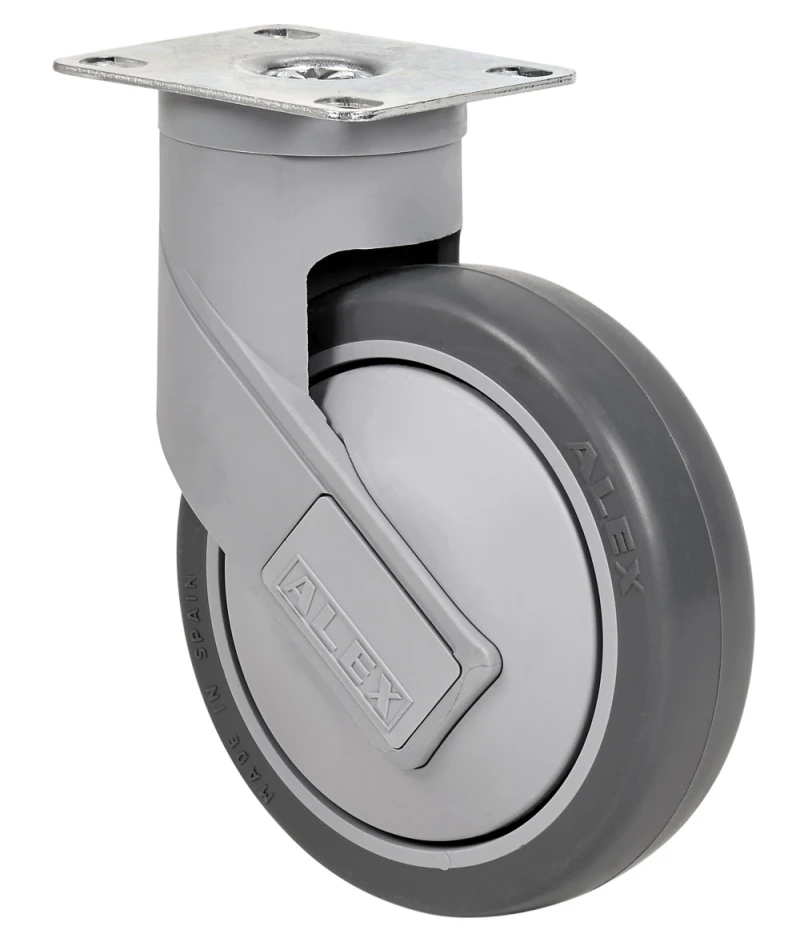

Our HC medium duty castors are recommended for medical equipment, institutional applications and for hotels and restaurants. Grey thermoplastic injected rubber wheel. Housing made of high quality polyamide reinforced with fibreglass. Upper swivel head with hardened double ball bearing (swivel plate and bolt hole) and embedded ball bearing (threaded pin). Especially designed to support loads up to 100 kg.

Used in healthcare equipment, operating rooms, beds, hospital furnitures, catering industry, kitchens.

PGAIB: Noiseless, vibrations absorption. Non-marking. Easy rolling.

Components

Brackets

Made of high quality polyamide reinforced with fibreglass. Upper swivel head with hardened double ball bearing (swivel plate and bolt hole). Embedded ball bearing (threaded pin). Manufactured according to European Standards EN 12530.

Wheel

Grey thermoplastic rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

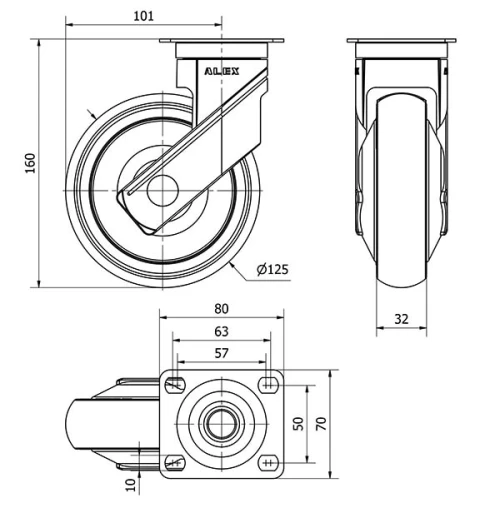

Technical Data 2-4641

EAN:

8422202246413

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

80x70

Distance between holes (mm):

60x50

Plate hole diameter (mm):

Offset (mm):

101

Overall height (mm):

160

Load:

100

Unit Weight of the wheel (kg):

0,6
