HC SERIES-PGAIB 2-4647

Code: 2-4647

Our HC medium duty castors are recommended for medical equipment, institutional applications and for hotels and restaurants. Grey thermoplastic injected rubber wheel. Housing made of high quality polyamide reinforced with fibreglass. Upper swivel head with hardened double ball bearing (swivel plate and bolt hole) and embedded ball bearing (threaded pin). Especially designed to support loads up to 100 kg.

Used in healthcare equipment, operating rooms, beds, hospital furnitures, catering industry, kitchens.

PGAIB: Noiseless, vibrations absorption. Non-marking. Easy rolling.

Components

Brackets

Made of high quality polyamide reinforced with fibreglass. Upper swivel head with hardened double ball bearing (swivel plate and bolt hole). Embedded ball bearing (threaded pin). Manufactured according to European Standards EN 12530.

Wheel

Grey thermoplastic rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

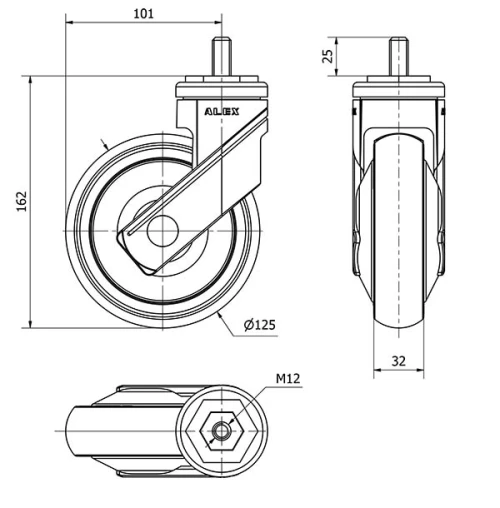

Technical Data 2-4647

EAN:

8422202246475

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Without Brake

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Width x height of stem:

12x25

Offset (mm):

101

Overall height (mm):

162

Load:

100

Unit Weight of the wheel (kg):

0,535
