I SERIES-PPI 1-0791

See comparative

Code: 1-0791

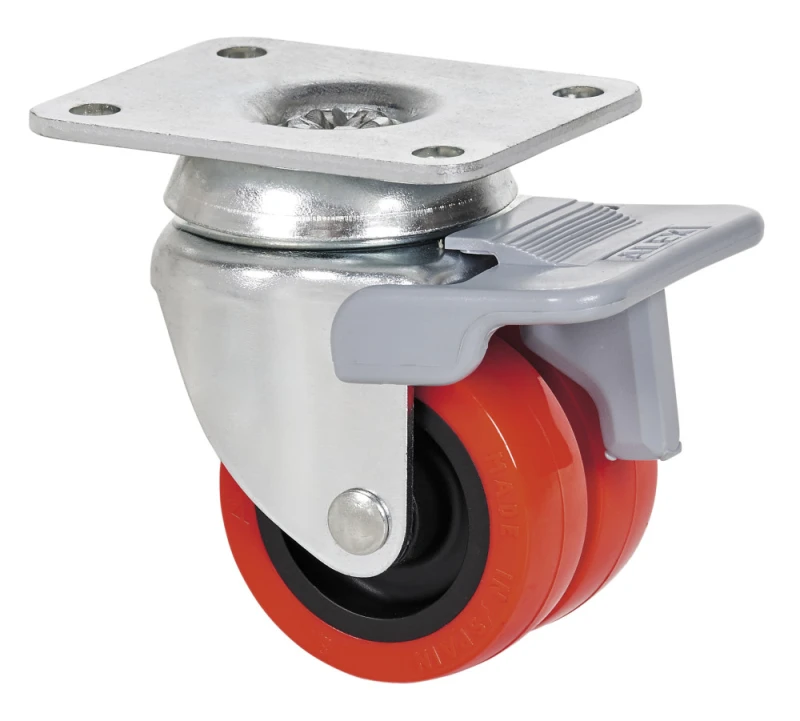

Injected polyurethane castors. Especially designed to support loads up to 100 kg.

Used in cold rooms, counters, bookstores, offices, clothing stores, hardware stores, chests, laundries, file carts, shred bins, shop interiors

PPI: Noiseless and undeformable. Easy rolling.

Components

Brackets

Made of pressed steel up to 2mm. Double ball bearing swivel head. Finish: Zinc-plated. Manufactured to European standards EN 12528.

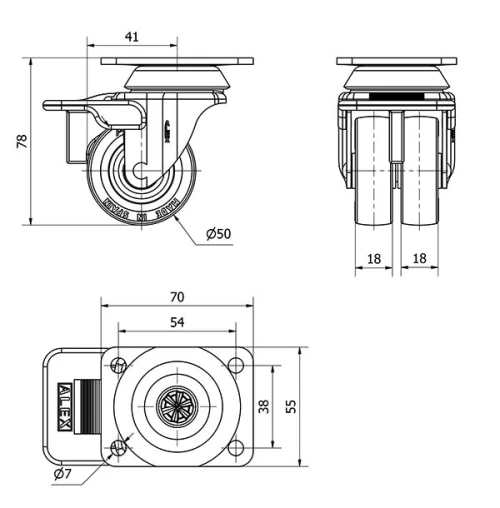

Technical Data 1-0791

EAN:

8422202107912

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Polyurethane

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

60º SHORE D

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

18x2

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

100

Unit Weight of the wheel (kg):

0,353

Volume (cm³):

395
