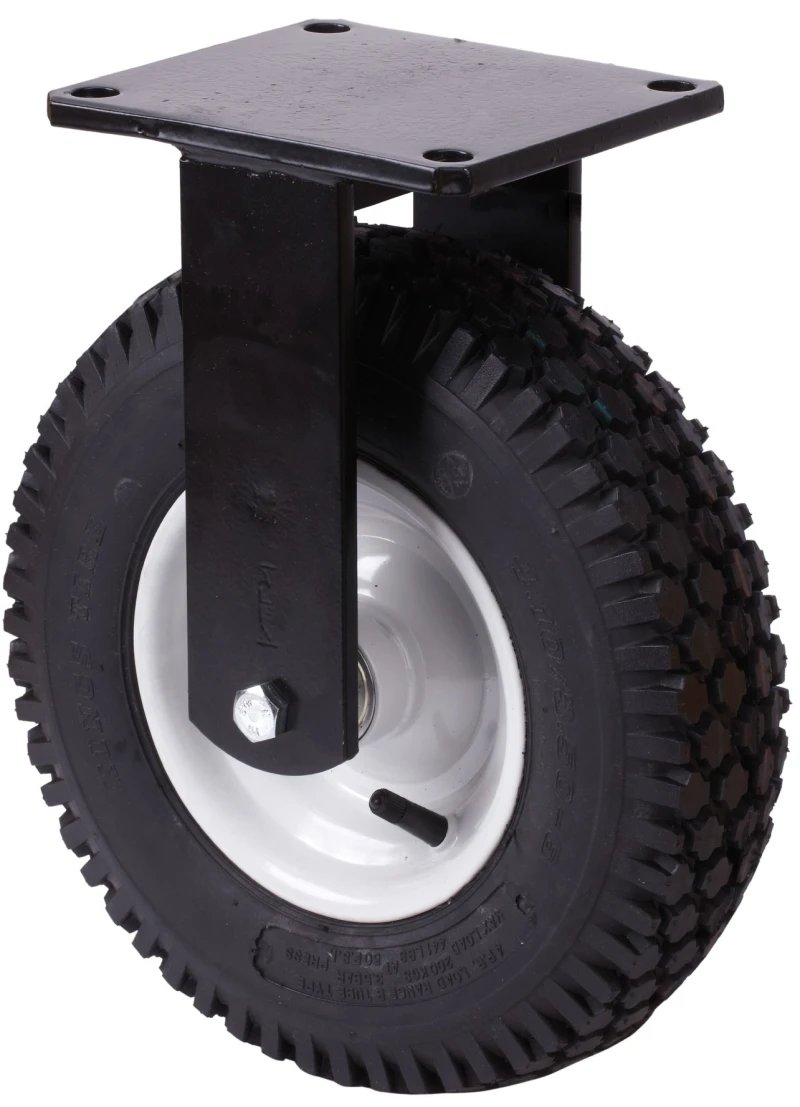

HLBI SERIES-RIT 6 4-1261

Code: 4-1261

Black castors with metallic rim. Four and six-ply pneumatic tyre, especially indicated to support high-loads up to 300 Kg.

It is used in: delivery carts, transporting bottles, drums, trailers, warehouse carts, platforms and transport carts.

RIT 6: pneumatic, noiseless, proper shock absorption.

Components

Brackets

Made of pressed steel up to 8 mm. Painted black. Excellent stock absorption. Low rolling resistance on uneven floors. High load capacity.

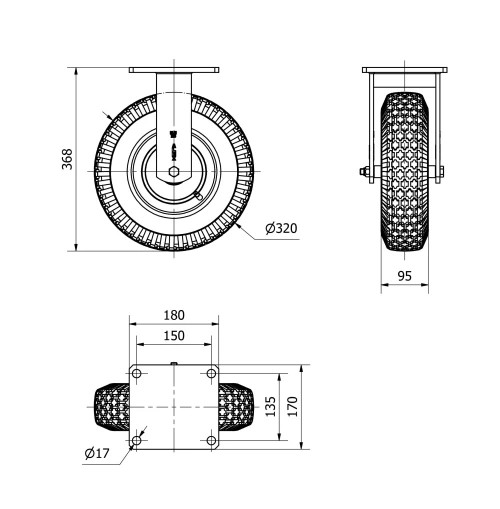

Technical Data 4-1261

EAN:

8422202412610

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Pneumatic Wheel

Bearing:

Ball

Diameter (mm):

320

Width of tyre (mm):

Plate dimensions (mm):

180x170

Distance between holes (mm):

150x135

Plate hole diameter (mm):

Overall height (mm):

368

Load:

250

Unit Weight of the wheel (kg):

7,08

Volume (cm³):

11261

Ply-Rating:

4 Ply-Rating
