ZV SERIES-EP 2-1118

See comparative

Code: 2-1118

Grey castors with puncture-proof pneumatic tyres, with polypropylene rim and elastic tyre, especially indicated to support high-loads up to 75 Kg.

It is used in: transport carts, tool transport.

EP: noiseless, does not leave marks on floor.

Components

Brackets

Made of pressed steel up to 4 mm Puncture-proof. Silent. Do not leave marks. Manufactured to European standards EN 12532.

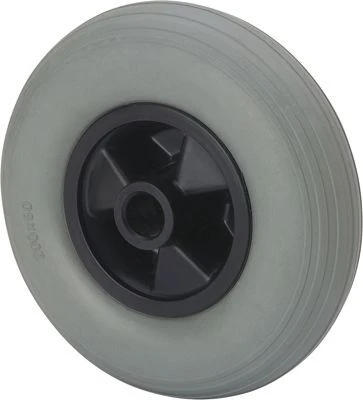

Wheel

Sturdy elastic, puncture-proof pneumatic tyre on polypropylene rim

Rolling Resistence Very Good

Noise during the march Excelent

Floor Protection Excelent

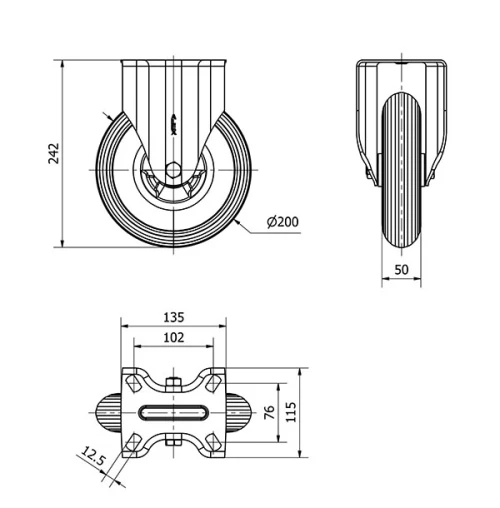

Technical Data 2-1118

EAN:

8422202211183

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Pneumatic Wheel

Bearing:

Roller

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

110x84/98x66

Plate hole diameter (mm):

Overall height (mm):

242

Load:

Unit Weight of the wheel (kg):

2,193

Volume (cm³):

5614
