Which castors do you need?
ZV SERIES-EP 2-1119
EAN 8422202211190
Grey castors with puncture-proof pneumatic tyres, with polypropylene rim and elastic tyre, especially indicated to support high-loads up to 75 Kg.
It is used in: transport carts, tool transport.
EP: noiseless, does not leave marks on floor.

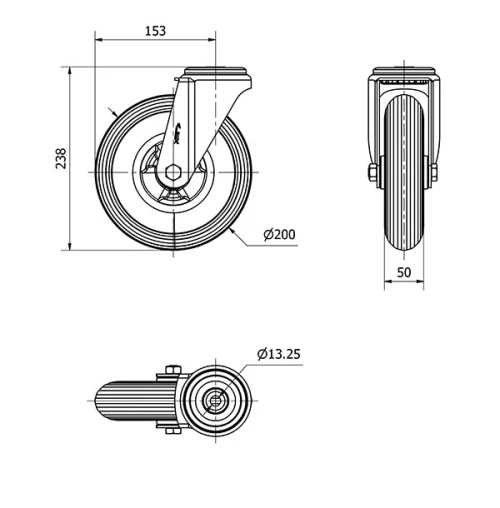

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Pneumatic Wheel |
Bearing | Roller |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 153 |
Overall height (mm) | 238 |
Load | 75 |
Unit Weight of the wheel (kg) | 2.189 |
Volume (cm3) | 4263 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm Puncture-proof. Silent. Do not leave marks. Manufactured to European standards EN 12532.
Sturdy elastic, puncture-proof pneumatic tyre on polypropylene rim
-
Rolling Resistence Very Good
-
Noise during the march Excelent
-
Floor Protection Excelent
