Which castors do you need?
BHD SERIES-SLC 2-2141
EAN 8422202221410
Our range of BH SERIE castors, is recommended for the medium duty sectors. It is used in: hospitality industry, hospitals, display stands, sales counters, decoration, canteens, dining rooms, restaurants, supermarkets, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, freezers, freezer cabinets, packaging machines, conveyor belts, cabinetmaker's, tools, sanitary furniture, drips and housekeeping carts.

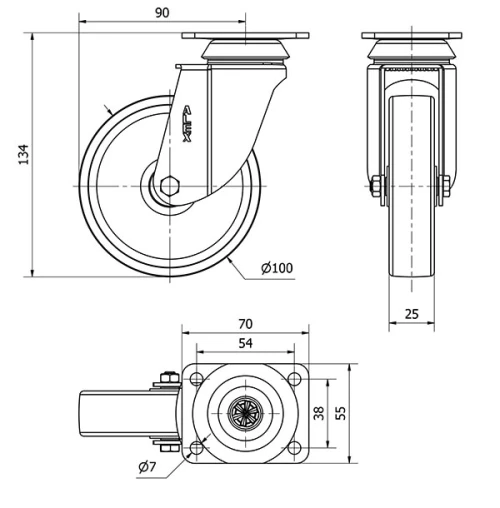

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polycarbonate - Design |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 25 |
Plate dimensions (mm) | 70x55 |
Distance between holes (mm) | 54x38 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 90 |
Overall height (mm) | 134 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.417 |
Volume (cm3) | 921 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2 mm. Finish: polished chrome. Fitting Type: plate and bolt hole fitting. Rubber-tyred, wood-centred wheel and Polycarbonate wheel. Colours: beech, cherry, wenge and crystal/glass. Available with break.
Imitation glass wheel
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
