BHD SERIES-SLC 2-2148

Code: 2-2148

Our range of BH SERIE castors, is recommended for the medium duty sectors. It is used in: hospitality industry, hospitals, display stands, sales counters, decoration, canteens, dining rooms, restaurants, supermarkets, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, freezers, freezer cabinets, packaging machines, conveyor belts, cabinetmaker's, tools, sanitary furniture, drips and housekeeping carts.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: polished chrome. Fitting Type: plate and bolt hole fitting. Rubber-tyred, wood-centred wheel and Polycarbonate wheel. Colours: beech, cherry, wenge and crystal/glass. Available with break.

Wheel

Imitation glass wheel

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

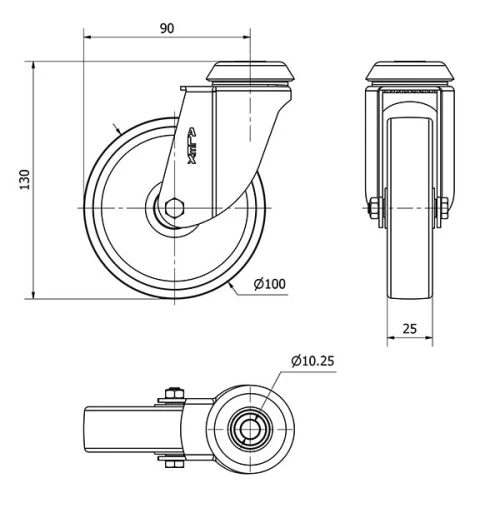

Technical Data 2-2148

EAN:

8422202221489

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Polycarbonate - Design

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

130

Load:

Unit Weight of the wheel (kg):

0,332

Volume (cm³):

729
