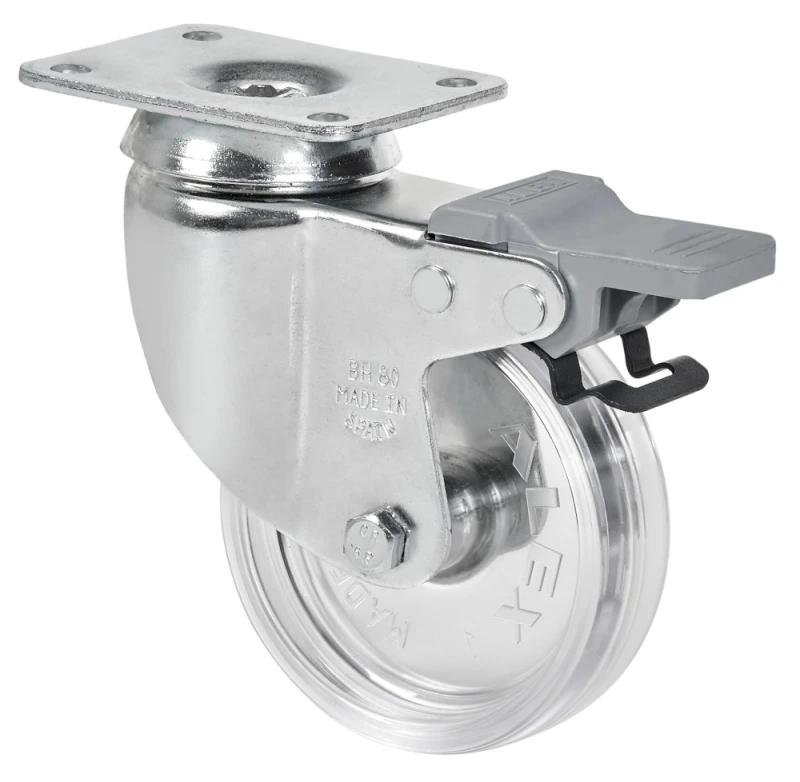

BHD SERIES-SLC 2-4810

Code: 2-4810

Our range of BH SERIE castors, is recommended for the medium duty sectors. It is used in: hospitality industry, hospitals, display stands, sales counters, decoration, canteens, dining rooms, restaurants, supermarkets, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, freezers, freezer cabinets, packaging machines, conveyor belts, cabinetmaker's, tools, sanitary furniture, drips and housekeeping carts.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: polished chrome. Fitting Type: plate and bolt hole fitting. Rubber-tyred, wood-centred wheel and Polycarbonate wheel. Colours: beech, cherry, wenge and crystal/glass. Available with break.

Wheel

Imitation glass wheel

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

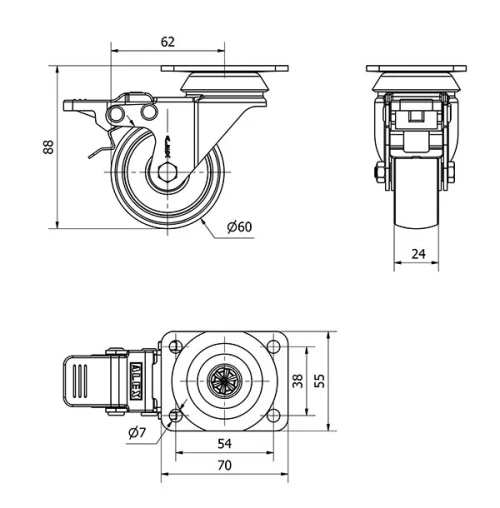

Technical Data 2-4810

EAN:

8422202248103

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Polycarbonate - Design

Bearing:

Plain

Color:

Transparent

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,382

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price
