BH SERIES-SLC 2-2277

Code: 2-2277

Our range of BH SERIE castors, is recommended for the medium duty sectors. It is used in: hospitality industry, hospitals, display stands, sales counters, decoration, canteens, dining rooms, restaurants, supermarkets, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, freezers, freezer cabinets, packaging machines, conveyor belts, cabinetmaker's, tools, sanitary furniture, drips and housekeeping carts.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: Zinc-plated. Fitting Type: plate and bolt hole. Rubber-tyred, wood-centred wheel and polycarbonate wheel. Colours:beech,cherry,crystal/glass. Available with break.

Wheel

Imitation glass wheel

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

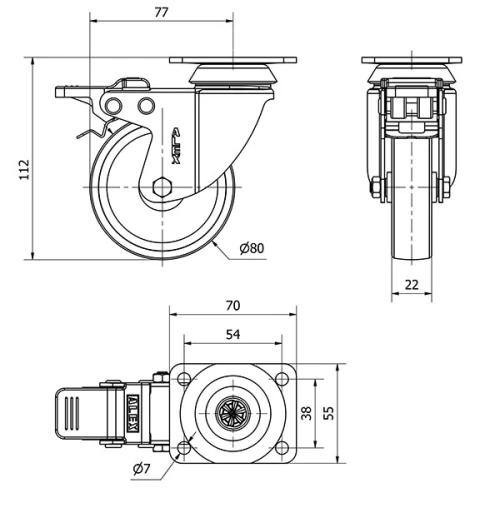

Technical Data 2-2277

EAN:

8422202222776

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Polycarbonate - Design

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

112

Load:

Unit Weight of the wheel (kg):

0,457

Volume (cm³):

850
