Which castors do you need?
BH SERIES-SLC 2-2279
EAN 8422202222790
Our range of BH SERIE castors, is recommended for the medium duty sectors. It is used in: hospitality industry, hospitals, display stands, sales counters, decoration, canteens, dining rooms, restaurants, supermarkets, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, freezers, freezer cabinets, packaging machines, conveyor belts, cabinetmaker's, tools, sanitary furniture, drips and housekeeping carts.

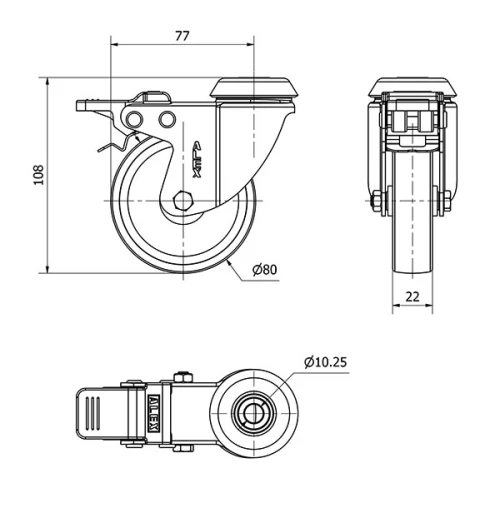

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Wheel Brake And Fork |
Material | Polycarbonate - Design |
Bearing | Plain |
Diameter (mm) | 80 |
Width of tyre (mm) | 22 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 77 |
Overall height (mm) | 108 |
Load | 70 |
Unit Weight of the wheel (kg) | 0.36 |
Volume (cm3) | 675 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components

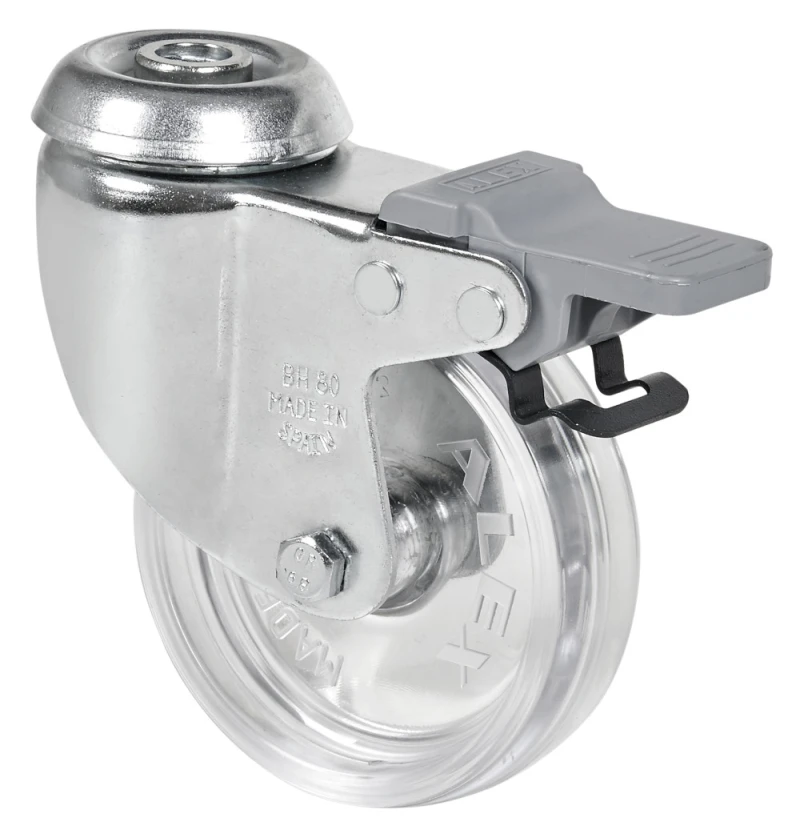

Made of pressed steel up to 2 mm. Finish: Zinc-plated. Fitting Type: plate and bolt hole. Rubber-tyred, wood-centred wheel and polycarbonate wheel. Colours:beech,cherry,crystal/glass. Available with break.
Imitation glass wheel
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
