ALU SERIES-ALU 1-0540

Code: 1-0540

Our range of ALU design castors with polyurethane nickel aluminium wheel, does not scratch the floor. Smooth tread.

It is used in: interior furniture, tables, auxiliary furniture, display stands, decoration, stackable boxes, display cabinets, stools, do-it-yourself shops, beauty and hairdresser's equipment, commercial spaces, interior design, fashion shops, design furniture and home.

Components

Brackets

Material: Pressed steel.Finish: nickel-plated.Fitting Type: Swivel plate. Double polyurethane-tyred on nickel-plated centre (stainless steel effect). Available with break.

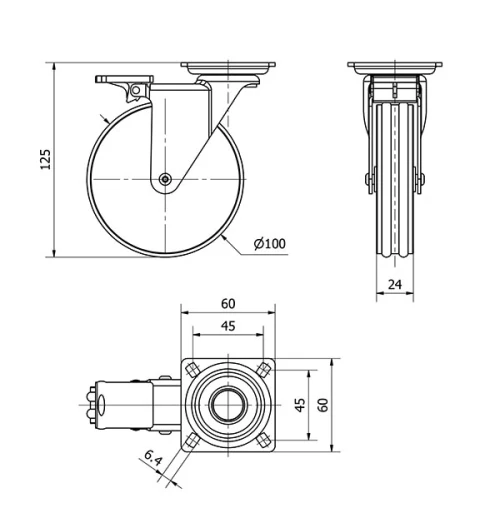

Technical Data 1-0540

EAN:

8422202105406

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Aluminium- Design

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

60x60

Distance between holes (mm):

45x45

Plate hole diameter (mm):

Overall height (mm):

125

Load:

Unit Weight of the wheel (kg):

0,75

Volume (cm³):

825
