Which castors do you need?
BLS SERIES-Blue BLS 1-0582
EAN 8422202105826
Our range of BLS design castors with wheels in the colours: blue, yellow, green, black, orange and brushed chrome finish, is used in: interior furniture, tables, auxiliary furniture, display stands, decoration, stackable boxes, display cabinets, stools, do-it-yourself shops, beauty and hairdresser's equipment, commercial spaces, interior design, fashion shops, design furniture and home.

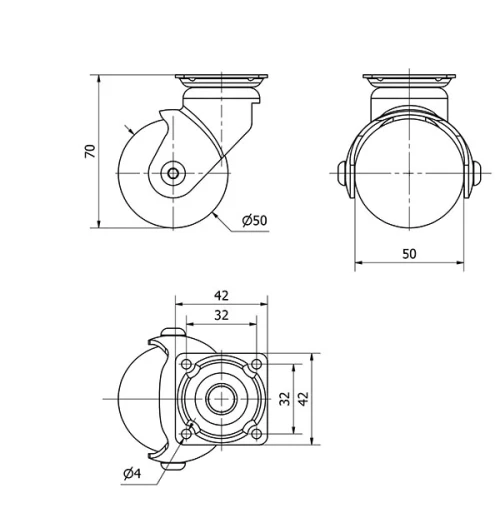

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Pvc- Design |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 42x42 |
Distance between holes (mm) | 32x32 |
Plate hole diameter (mm) | 4 |
Overall height (mm) | 70 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.2 |
Volume (cm3) | 209 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components

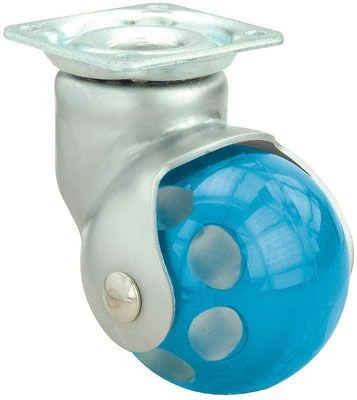

Material: Pressed steel.Finish: brushed chrome. Fitting Type: Swivel plate.Ball-shaped wheel with a transparent PVC tyre and a coloured polypropylene centre.Colours: yellow, orange, green, blue, black.
