Which castors do you need?

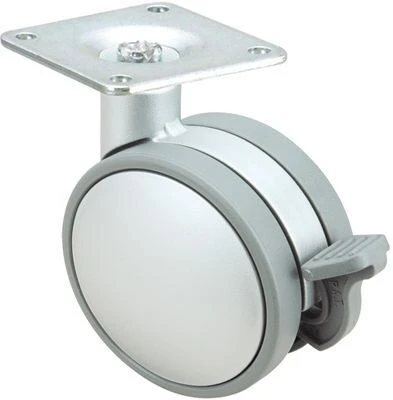

DKP SERIES-DKP 1-0619
EAN 8422202106199
Our range of DKP SERIE design castors with nylon wheel and silver finish, is recommended for the furniture sector and catering. It is used in: interior furniture, tables, auxiliary furniture, display stands, decoration, display cabinets, stools, do-it-yourself shops, beauty and hairdresser's equipment, commercial spaces, interior design, fashion shops, design furniture and home.

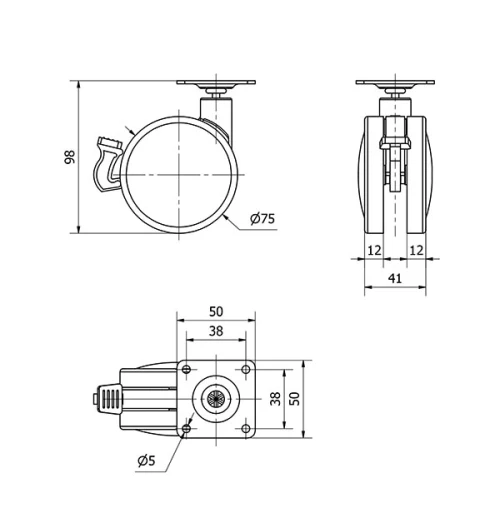

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake |
Material | Pvc- Design |
Bearing | Plain |
Diameter (mm) | 75 |
Width of tyre (mm) | 47 |
Plate dimensions (mm) | 50x50 |
Distance between holes (mm) | 38x38 |
Plate hole diameter (mm) | 5 |
Overall height (mm) | 98 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.2 |
Volume (cm3) | 490 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Material: Pressed steel. Finish: silver.Fittings: Swivel Plate, threaded stem. Nylon wheel.Colour: grey.Avalaibe with brake.
