Which castors do you need?

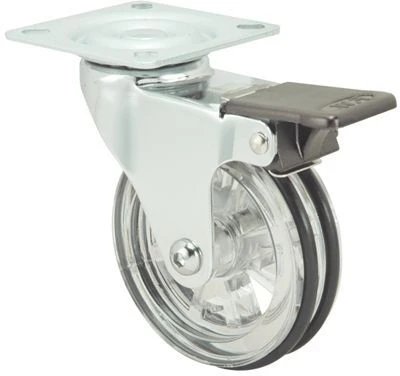

RD SERIES-Black RD 1-0534
EAN 8422202105345
Our range of RD polyurethane design castors does not scratch the floor. Smooth tread.
It is used in: interior furniture, tables, auxiliary furniture, display stands, decoration, stackable boxes, display cabinets, stools, do-it-yourself shops, beauty and hairdresser's equipment, commercial spaces, interior design, fashion shops, design furniture and home.

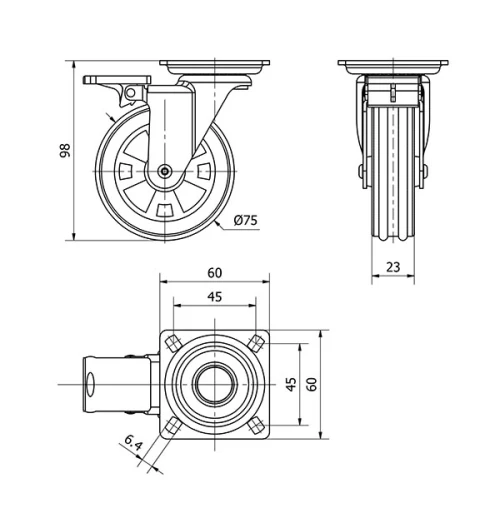

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake |
Material | Polycarbonate - Design |
Bearing | Plain |
Diameter (mm) | 75 |
Width of tyre (mm) | 23 |
Plate dimensions (mm) | 60x60 |
Distance between holes (mm) | 45x45 |
Plate hole diameter (mm) | 6 |
Overall height (mm) | 98 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.3 |
Volume (cm3) | 600 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Material: Pressed steel. Finish: polished chrome. Fitting Type: Swivel plate.Polyurethane-tyre on transparent acrylic centre.Colours: Red, yellow, orange, green, blue, black. Available with break.
