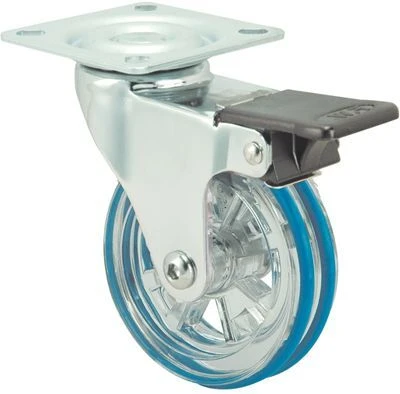

RD SERIES-Blue RD 1-0533

Code: 1-0533

Our range of RD polyurethane design castors does not scratch the floor. Smooth tread.

It is used in: interior furniture, tables, auxiliary furniture, display stands, decoration, stackable boxes, display cabinets, stools, do-it-yourself shops, beauty and hairdresser's equipment, commercial spaces, interior design, fashion shops, design furniture and home.

Components

Brackets

Material: Pressed steel. Finish: polished chrome. Fitting Type: Swivel plate.Polyurethane-tyre on transparent acrylic centre.Colours: Red, yellow, orange, green, blue, black. Available with break.

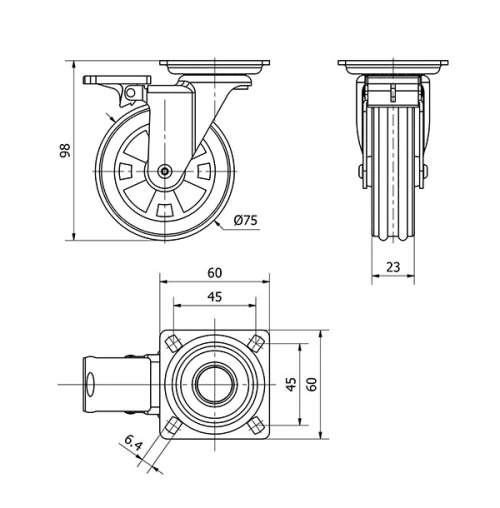

Technical Data 1-0533

EAN:

8422202105338

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Polycarbonate - Design

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

60x60

Distance between holes (mm):

45x45

Plate hole diameter (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,3

Volume (cm³):

600

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products
