CLR SERIES-CLR 1-0780

Code: 1-0780

Our CLR design series is recommended for indoor furniture, side tables, side furniture, displays, decoration, stackable boxes, showcases, stools, DIY, beauty equipment, hair salons, point of sale displays, interior design, clothing stores, design furniture.

Components

Brackets

Bracket made of polished chrome steel. Fitting: Swivel plate Ball bearing on the wheel. Also available with brake.

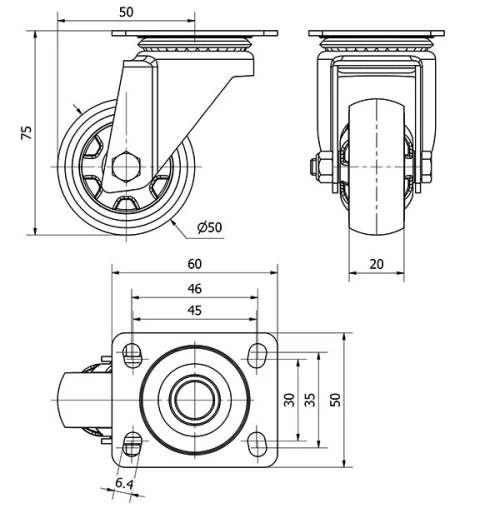

Technical Data 1-0780

EAN:

8422202107806

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

60x50

Distance between holes (mm):

46x35

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,22

Volume (cm³):

300

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

1-0783
