TC SERIES-PO 2-3788

Code: 2-3788

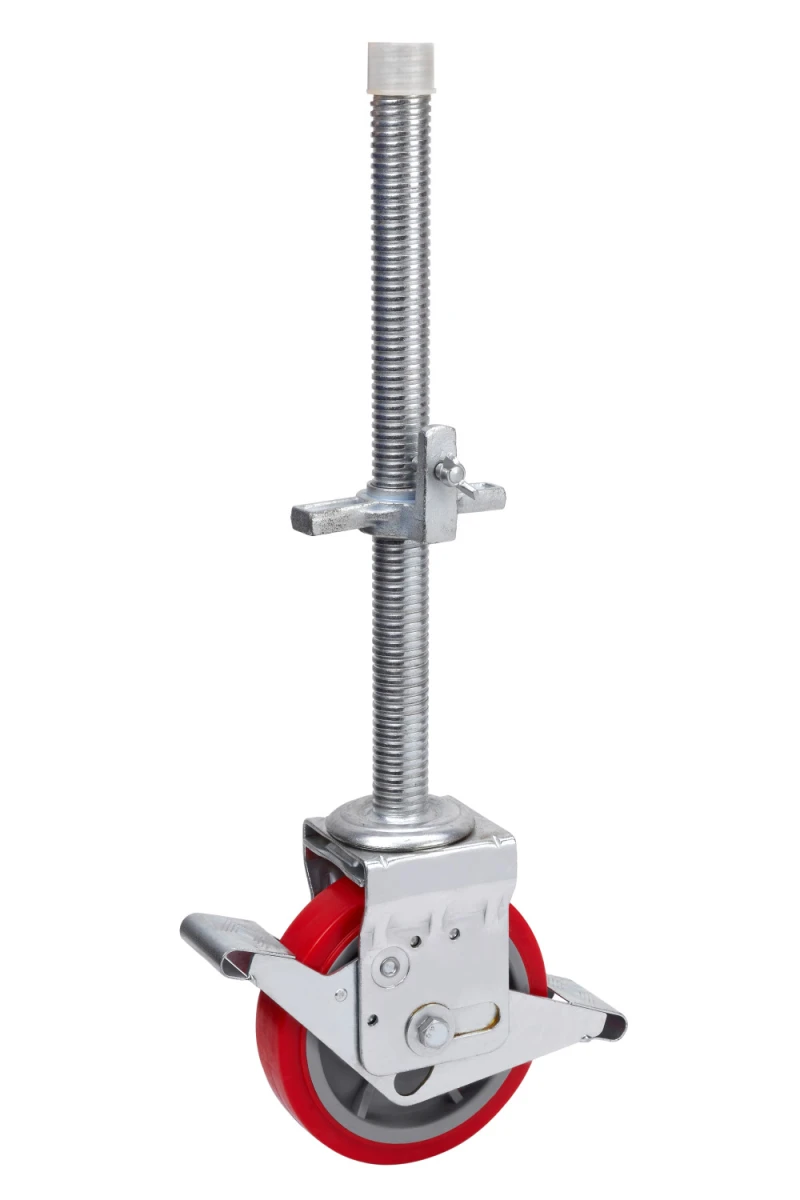

Castors with white nylon centre and red cast polyurethane tyre with a hardness of 90-95º Shore A, especially indicated to support high-loads up to 300 Kg.

With threaded stem adjustable in elevation up to 500 mm.

It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.

Suitable for all kind of indoor or outdoor flooring surfaces.

PO: elastic functioning. Noiseless. High floor protection. Long useful life.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: passivated zinc. Adjustable total brake. High load capacity. Recommended for scaff olding up to 4 metres and stable floors. Manufactured to European standard EN 12532.

Wheel

Red polyurethane tyre on white polyamide centre.95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

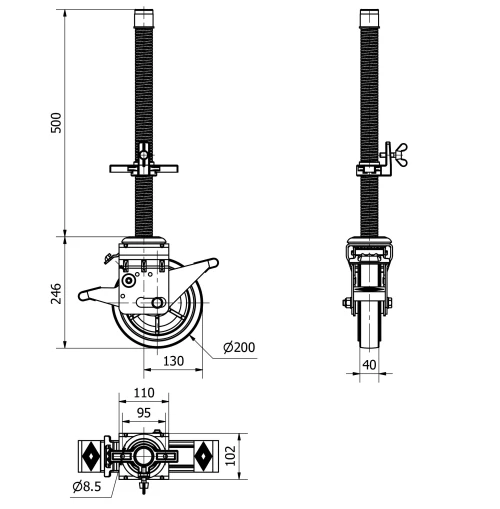

Technical Data 2-3788

EAN:

8422202237886

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Wheel Brake And Fork

Material:

Polyurethane

Hardness of tread:

90-95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Width x height of stem:

40x500

Offset (mm):

155

Overall height (mm):

240

Load:

300

Unit Weight of the wheel (kg):

6,5

Volume (cm³):

23680
