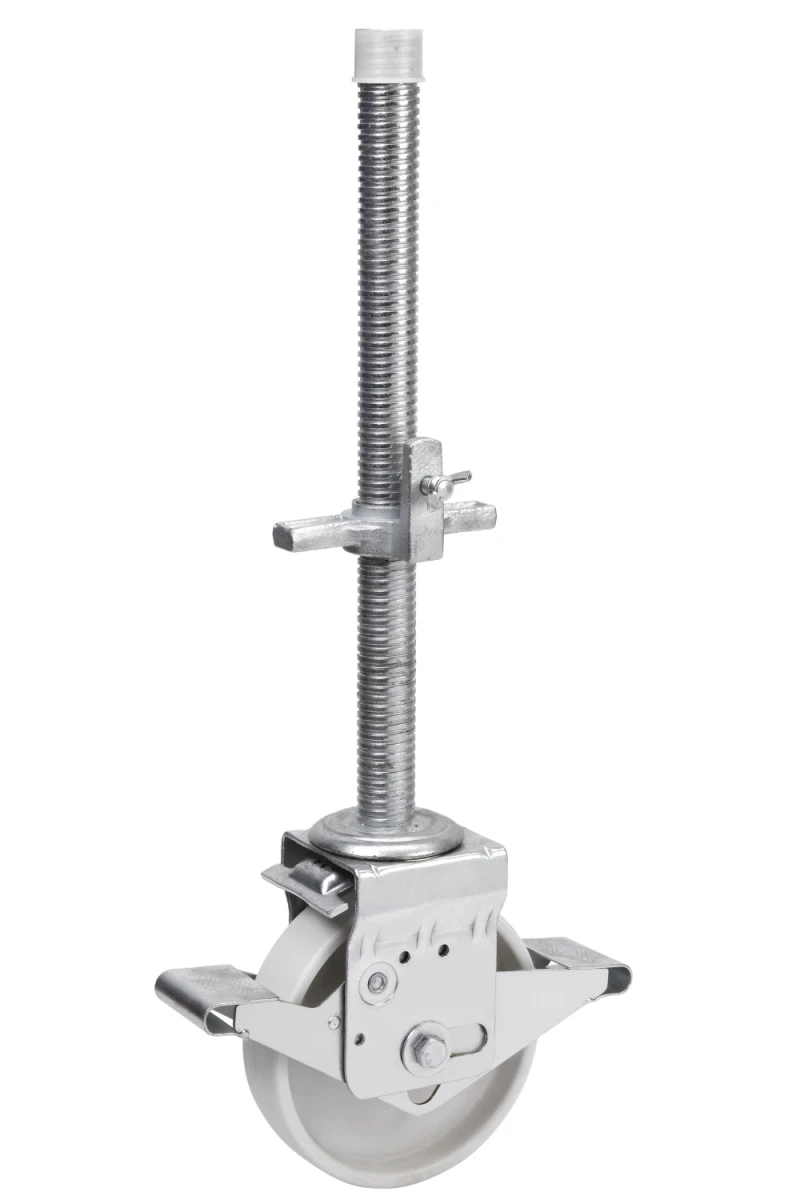

TC SERIES-TN 2-3787

Code: 2-3787

White nylon castors, especially indicated to support high-loads up to 400 Kg.

With threaded stem adjustable in elevation up to 500 mm.

It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.

Suitable for all kind of indoor or outdoor flooring surfaces.

TN: robust and resistant. Undeformable, easy to move with high-loads.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: passivated zinc. Adjustable total brake. High load capacity. Recommended for scaff olding up to 4 metres and stable floors. Manufactured to European standard EN 12532.

Wheel

White nylon ( Polyamide 6) wheel

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

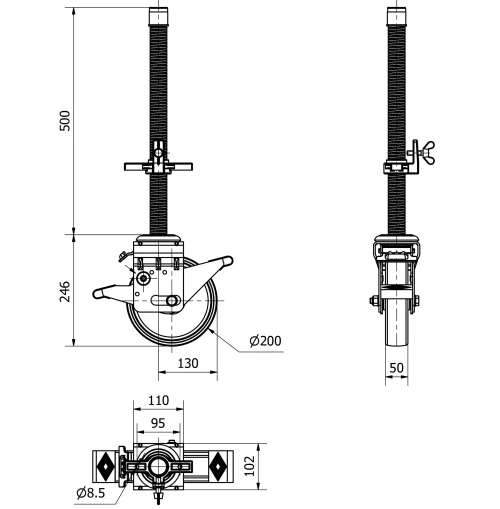

Technical Data 2-3787

EAN:

8422202237879

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Wheel Brake And Fork

Material:

Nylon(Polyamide 6)

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Width x height of stem:

40x500

Offset (mm):

155

Overall height (mm):

240

Load:

400

Unit Weight of the wheel (kg):

6,5

Volume (cm³):

23680
