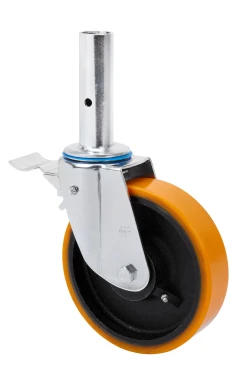

Castors with steel and cast poluyrethane centre with a hardness of 95º Shore A, especially indicated to support high-loads up to 700 Kg.

It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.

Suitable for all kind of indoor or outdoor flooring surfaces.

HU: high absorption to impacts. Floor protection. Recommended for rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

TVA SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-2497 200 700 50 Bearing: Ball -- -- 51x120 246 155

TVA SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-2496 200 700 50 Bearing: Ball -- -- 40x135 246 155

Other castors SERIE TVA

SERIE TVA-TN
Diametro 200-200 mm
Carga 650-650 kg
SERIE TVA-HG
Diametro 200-200 mm
Carga 500-500 kg
