Which castors do you need?
TVA SERIES-HU 2-2496
EAN 8422202224961

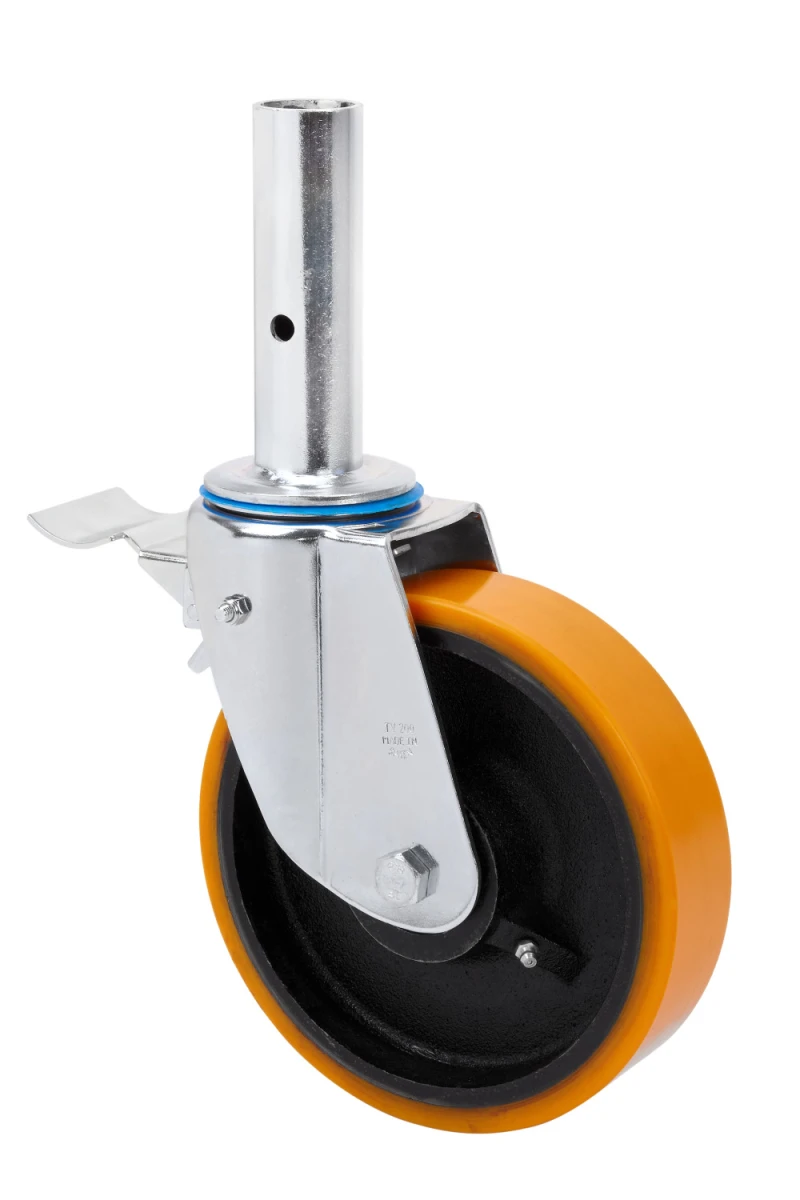

Castors with steel and cast poluyrethane centre with a hardness of 95º Shore A, especially indicated to support high-loads up to 700 Kg.
It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.
Suitable for all kind of indoor or outdoor flooring surfaces.
HU: high absorption to impacts. Floor protection. Recommended for rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

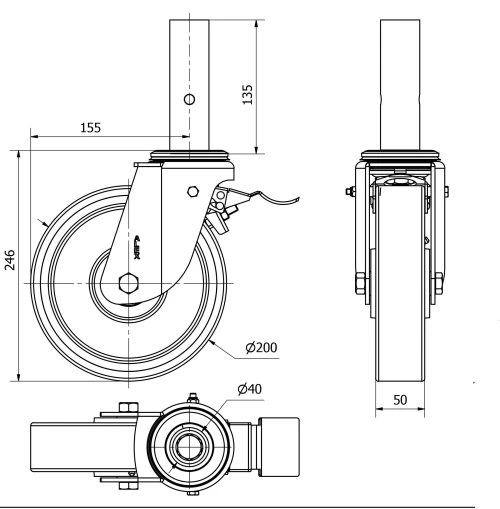

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Stem |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Width x height of stem | 40x135 |
Offset (mm) | 155 |
Overall height (mm) | 246 |
Load | 700 |
Unit Weight of the wheel (kg) | 6.76 |
Volume (cm3) | 3411 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: passivated zinc. Adjustable total brake. High load capacity. Recommended for scaff olding up to 4 metres and stable floors. Manufactured to European standard EN 12532.
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
