ZVA SERIES-PS 2-0918

Code: 2-0918

Castors with polypropylene centre and black rubber tyre. Especially indicated to support high-loads up to 215 Kg.

It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.

Suitable for all kind of indoor or outdoor flooring surfaces.

PS: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Made of pressed steel up to 3 mm.Finish: Zinc plated.Total brake.Recommended for scaffolding up to 4 metres and stable floors.Manufactured to European standard EN 12532.

Wheel

Rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

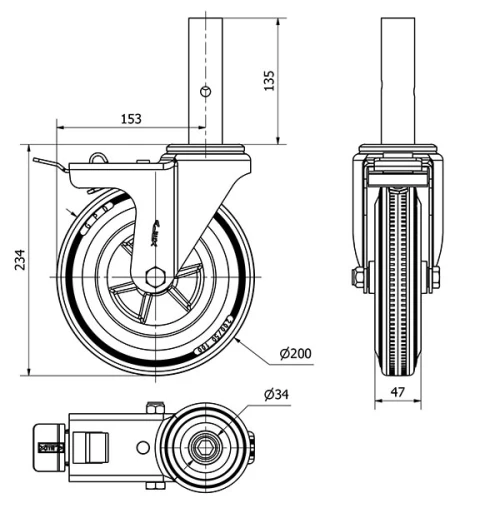

Technical Data 2-0918

EAN:

8422202209180

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

Width x height of stem:

34x135

Offset (mm):

153

Overall height (mm):

234

Load:

215

Unit Weight of the wheel (kg):

3,222

Volume (cm³):

4631
