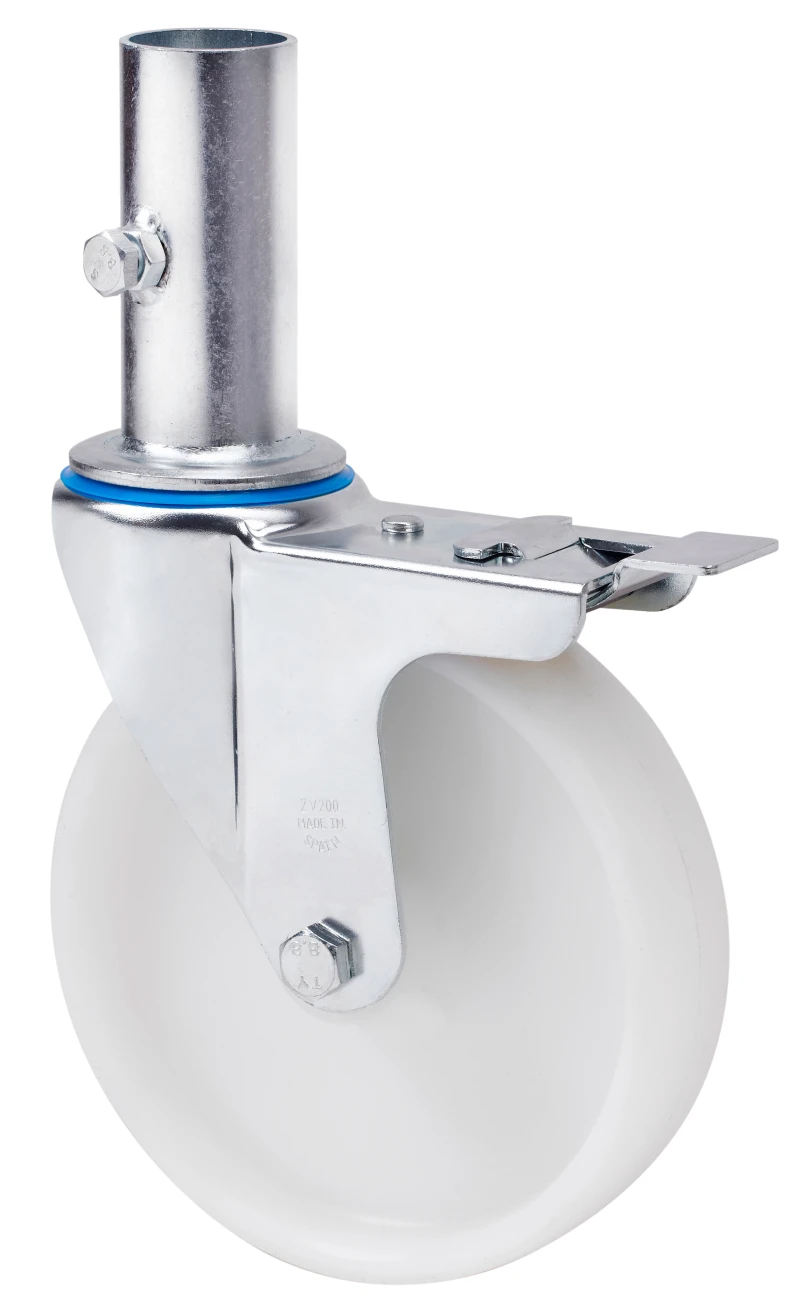

ZVA SERIES-TN 2-0903

Code: 2-0903

White nylon castors, especially indicated to support high-loads up to 350 Kg.

It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.

Suitable for all kind of indoor or outdoor flooring surfaces.

TN: robust and resistant. Undeformable, easy to move with high-loads.

Components

Brackets

Made of pressed steel up to 3 mm.Finish: Zinc plated.Total brake.Recommended for scaffolding up to 4 metres and stable floors.Manufactured to European standard EN 12532.

Wheel

White nylon ( Polyamide 6) wheel

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

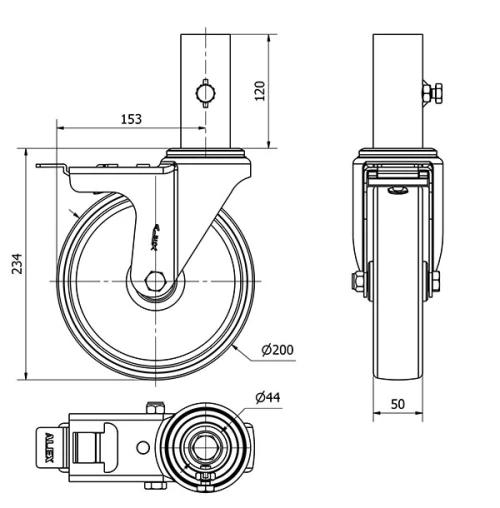

Technical Data 2-0903

EAN:

8422202209036

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Wheel Brake And Fork

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

Width x height of stem:

44x120

Offset (mm):

153

Overall height (mm):

234

Load:

350

Unit Weight of the wheel (kg):

2,68

Volume (cm³):

4631
