SERIE ZLI INOX-POL

Categories

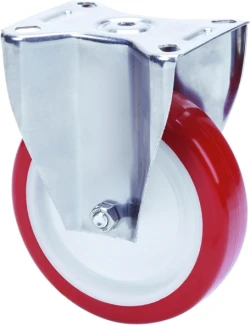

Injected polyurethane castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 130 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, conveyor belts, light machinery for the construction, poultry farms, slaughterhouses, meat industry, dairy industry and chemical industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

POL: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

See comparative

ZLI SERIES-POL

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3092 80 100 32 Bearing: Plain 95x80 80x60 8 108 71
2-3093 100 120 32 Bearing: Plain 95x80 80x60 8 127 80
2-3094 125 130 32 Bearing: Plain 95x80 80x60 8 155 88
2-5156 125 300 42 Bearing: Plain 128x106 105x80 11 165 113

ZLI SERIES-POL

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3095 80 100 32 Bearing: Plain 100x80 80x60 8 108 --
2-3096 100 120 32 Bearing: Plain 100x80 80x60 8 127 --
2-3097 125 130 32 Bearing: Plain 100x80 80x60 8 155 --
2-5158 125 300 45 Bearing: Plain 133X107 105x80 11 165 --

ZLI SERIES-POL

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3098 80 100 32 Bearing: Plain 95x80 80x60 8 108 71
2-3099 100 120 32 Bearing: Plain 95x80 80x60 8 127 80
2-3100 125 130 32 Bearing: Plain 95x80 80x60 8 155 88
2-5157 125 300 42 Bearing: Plain 128x106 105x80 11 165 113

ZLI SERIES-POL

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-3101 80 100 32 Bearing: Plain -- -- 12 108 71
2-3102 100 120 32 Bearing: Plain -- -- 12 127 80
2-3103 125 130 32 Bearing: Plain -- -- 12 155 88

ZLI SERIES-POL

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-3104 80 100 32 Bearing: Plain -- -- 12 108 71
2-3105 100 120 32 Bearing: Plain -- -- 12 127 80
2-3106 125 130 32 Bearing: Plain -- -- 12 155 88

Other castors SERIE ZLI INOX

SERIE ZLI INOX-UT
SERIE ZLI INOX-UT
Diametro 80-125 mm
Carga 100-300 kg
