ZLI SERIES-POL 2-3105
EAN 8422202231051
Injected polyurethane castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 130 Kg.
It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, conveyor belts, light machinery for the construction, poultry farms, slaughterhouses, meat industry, dairy industry and chemical industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
POL: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

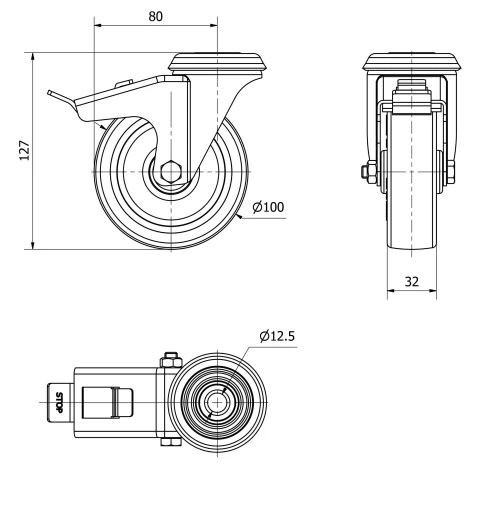

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 32 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 80 |
Overall height (mm) | 127 |
Load | 120 |
Unit Weight of the wheel (kg) | 0.578 |
Volume (cm3) | 1146 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed stainless steel (AISI 304) up to 2.5mm Bearings and all parts are stainless steel. Manufactured to European standards EN 12530.
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
