125 SERIES-125 TW0278

Code: TW0278

Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 205 Kg. It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, logistics for military missions material, restaurants, sweeping machines, polishing machines, welding, cement mixers, mobiles cranes, trailers, agricultural farms, elevating tables, roll containers and containers.

TWIN-LEX 125: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Stamped steel plate with bright zinc finish. Swivel or fixed plate. With double ball bearing. Bearings: Rollers.

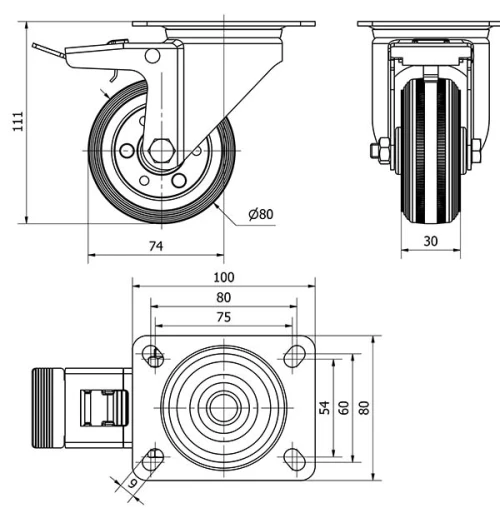

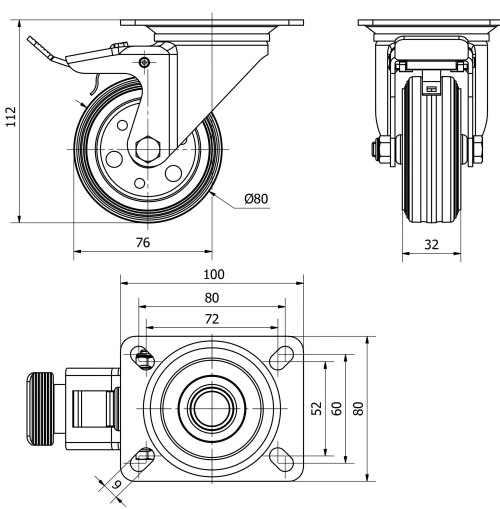

Technical Data TW0278

EAN:

8422202002781

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Roller

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

102x80

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

111

Load:

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
