125 SERIES-125 TW0281

Code: TW0281

Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 205 Kg. It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, logistics for military missions material, restaurants, sweeping machines, polishing machines, welding, cement mixers, mobiles cranes, trailers, agricultural farms, elevating tables, roll containers and containers.

TWIN-LEX 125: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Stamped steel plate with bright zinc finish. Swivel or fixed plate. With double ball bearing. Bearings: Rollers.

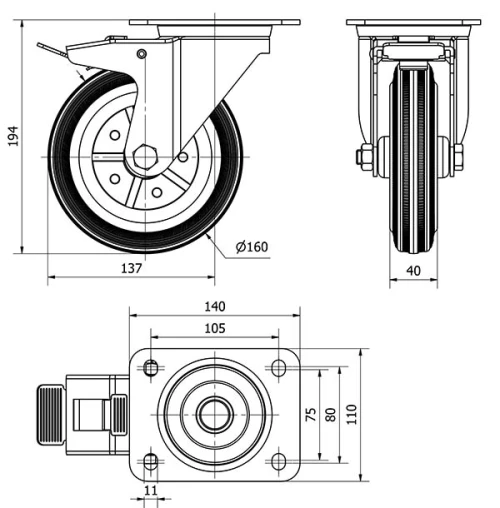

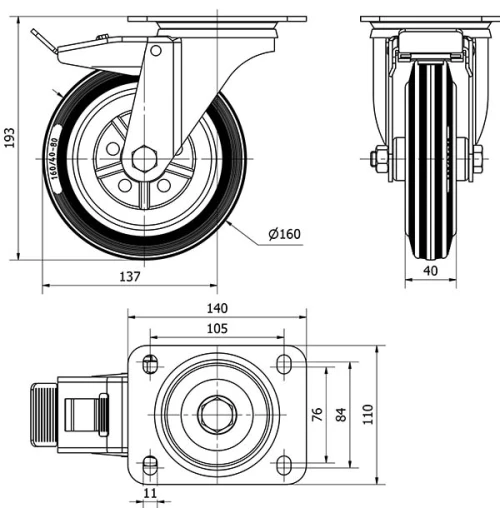

Technical Data TW0281

EAN:

8422202002811

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Roller

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

135x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

131

Overall height (mm):

197

Load:

160
