Which castors do you need?
TW0282
EAN 8422202002828
Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 205 Kg. It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, logistics for military missions material, restaurants, sweeping machines, polishing machines, welding, cement mixers, mobiles cranes, trailers, agricultural farms, elevating tables, roll containers and containers.
TWIN-LEX 125: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

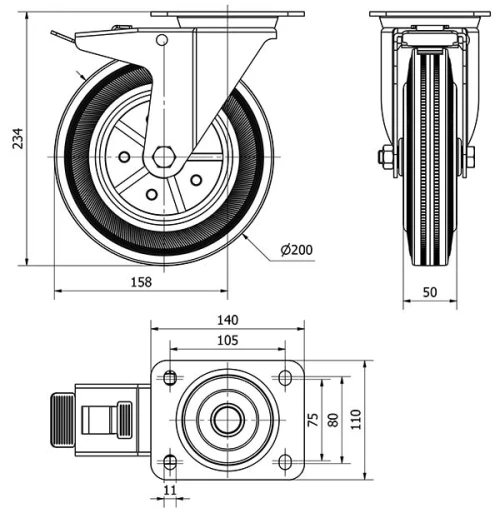

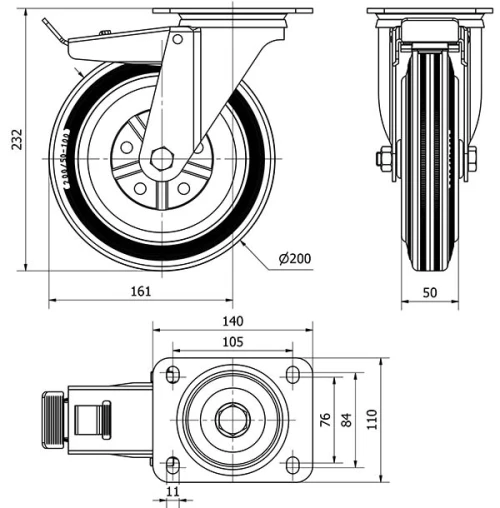

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Roller |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 135x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 150 |
Overall height (mm) | 238 |
Load | 205 |
