Which castors do you need?

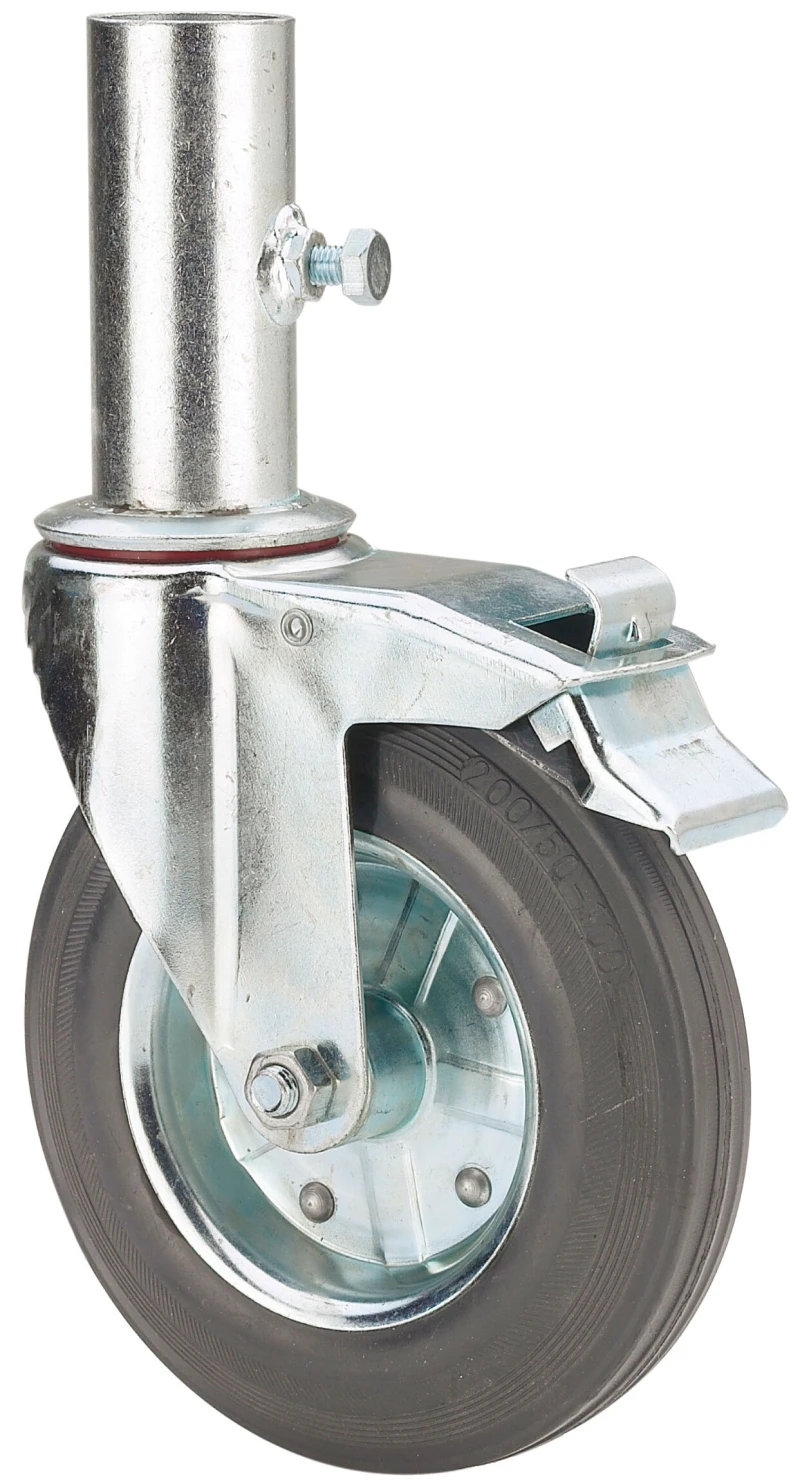

200 SERIES-200 TW0058
EAN 8422202000589
Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 200 Kg.
Have been designed to be used in scaffolding.
Twin-lex 200: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

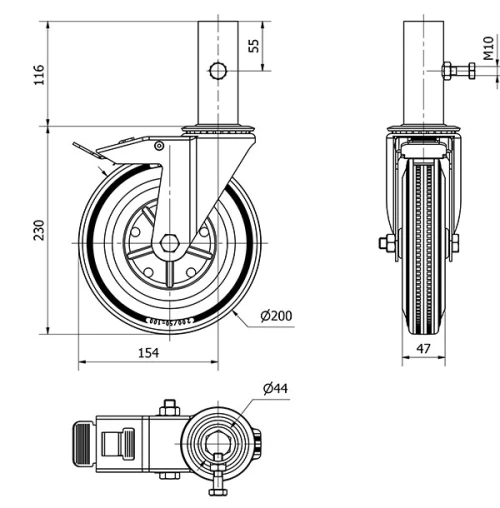

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Stem |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Roller |
Diameter (mm) | 200 |
Width of tyre (mm) | 47 |
Width x height of stem | 44x116 |
Load | 200 |
Unit Weight of the wheel (kg) | 3.33 |
Volume (cm3) | 5596.5 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Pressed steel bracket. Finish: glossy zinc plating.Plug-in pin and solid stem fitting for scaffolding.Standard system.Double ball bearing.Wheel Bearings: roller bearing.
