Which castors do you need?

SERIE 310-310

Categories

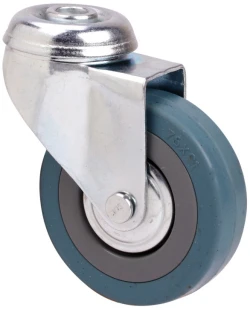

Grey injected rubber castors. Especially indicated to support high-loads up to 80 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.

TWIN-LEX 310: does not scratch or leave marks on floor. Noiseless.

See comparative

310 SERIES-310

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0077 50 25 18 Bearing: Plain 50x50 39x39/32x32 6 70 48
TW0079 75 50 21 Bearing: Plain 65x65 52x52/44x44 6 100 70
TW0080 100 60 25 Bearing: Plain 76x76 60x60/50x50 8 130 83
TW0081 125 80 27 Bearing: Plain 76x76 60x60/50x50 8 158 98

310 SERIES-310

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0082 50 25 18 Bearing: Plain 50x50 39x39/32x32 6 70 48
TW0084 75 50 21 Bearing: Plain 65x65 52x52/44x44 6 100 70
TW0085 100 60 25 Bearing: Plain 76x76 60x60/50x50 8 130 83
TW0086 125 80 27 Bearing: Plain 76x76 60x60/50x50 8 158 98

310 SERIES-310

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0087 50 25 18 Bearing: Plain -- -- 10 70 48
TW0089 75 50 21 Bearing: Plain -- -- 10 100 70
TW0090 100 60 25 Bearing: Plain -- -- 12 130 83
TW0091 125 80 27 Bearing: Plain -- -- 12 158 98

310 SERIES-310

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0092 50 25 18 Bearing: Plain -- -- 10 70 48
TW0094 75 50 21 Bearing: Plain -- -- 10 100 70
TW0095 100 60 25 Bearing: Plain -- -- 12 130 83
TW0096 125 80 27 Bearing: Plain -- -- 12 158 98
