310 SERIES-310 TW0096
EAN 8422202000961
Grey injected rubber castors. Especially indicated to support high-loads up to 80 Kg.
It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.
TWIN-LEX 310: does not scratch or leave marks on floor. Noiseless.

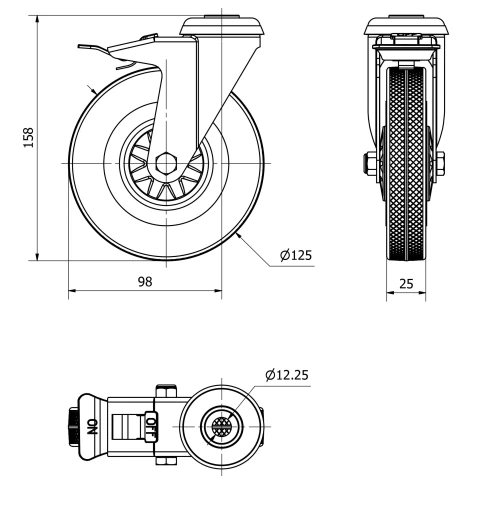

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 125 |
Width of tyre (mm) | 27 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 98 |
Overall height (mm) | 158 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.74 |
Volume (cm3) | 1066.5 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Pressed steel bracket. Finish: glossy zinc plating. Fitting: plate and bolt hole. Double ball bearing. Wheel Bearings: Plain bearing.
