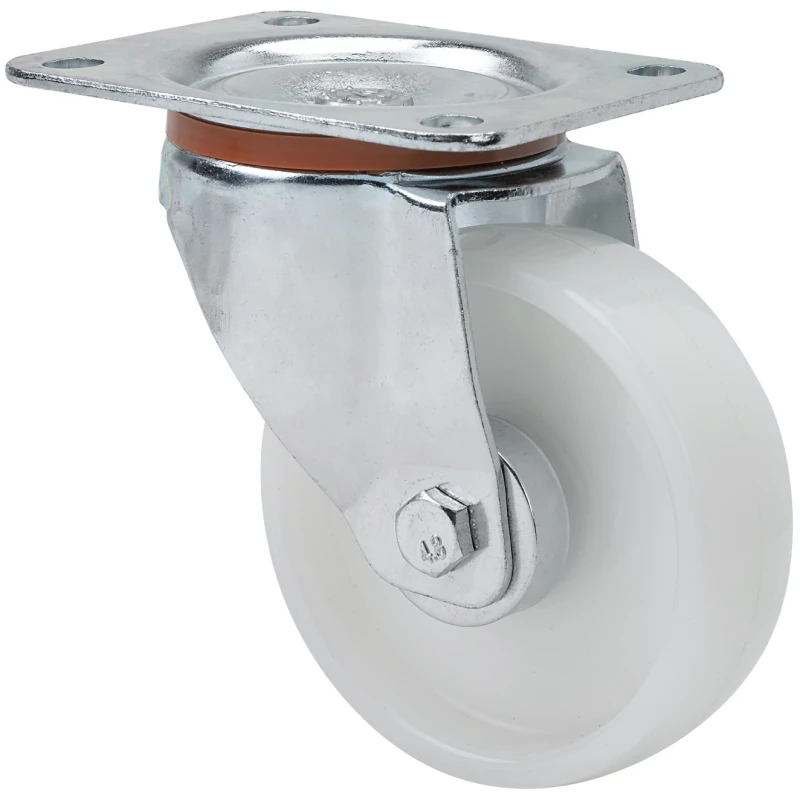

110 SERIES-110 TW0022
EAN 8422202000220
White polypropylene castors, especially indicated to support high-loads up to 280 Kg.
It is used in: logistics transport tools, outdoor areas, clean rooms, internal logistics, mobile platforms, elevating platforms, transport carts and roll containers.
Mainly used in the industrial sector.
TWIN-LEX 110: undeformable, light weight, resistance to impacts and clean.

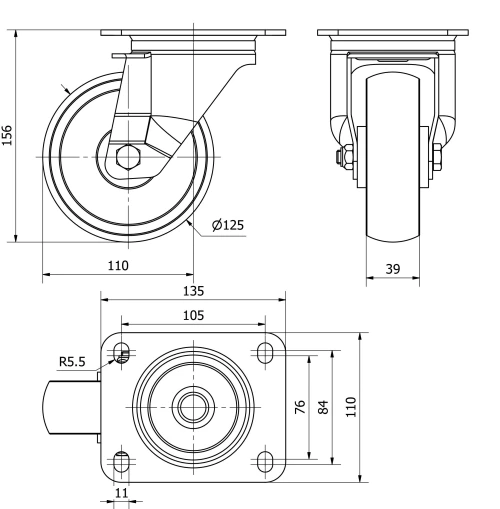

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Plastic Polypropylene |
Bearing | Roller |
Diameter (mm) | 125 |
Width of tyre (mm) | 40 |
Plate dimensions (mm) | 135x110 |
Distance between holes (mm) | 105x85/75 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 98 |
Overall height (mm) | 156 |
Load | 280 |
Unit Weight of the wheel (kg) | 1.5 |
Volume (cm3) | 2839.98 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Pressed steel bracket.Finish: Zinc-plated.Fitting: plate.Double ball bearing.Wheel Bearings: roller bearing.
