111 SERIES-111 TW0149

Code: TW0149

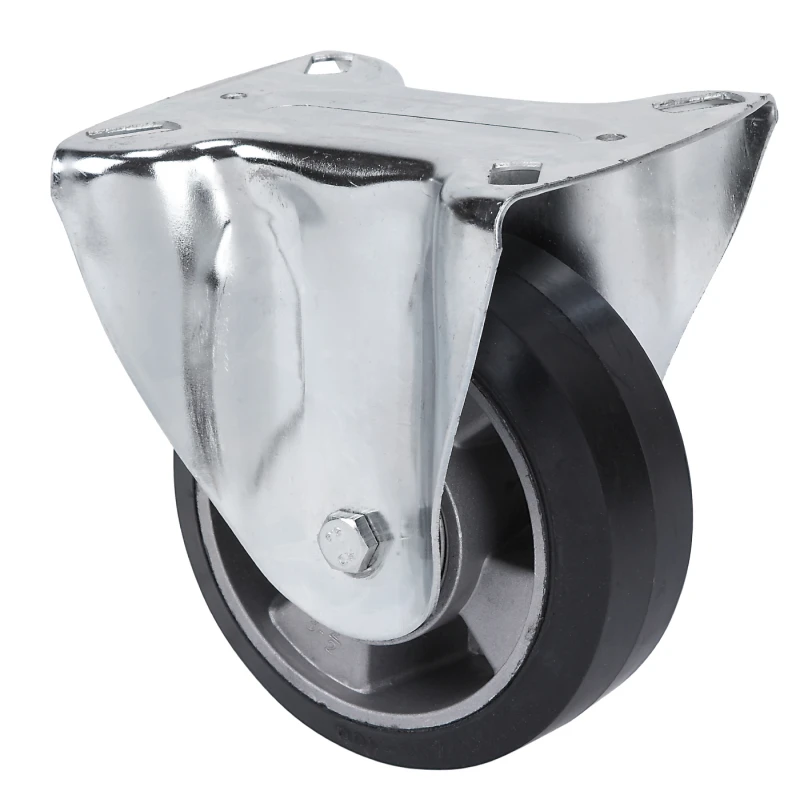

Castors with steel aluminium and elastic black rubber tyre. Especially indicated to support high-loads up to 300 Kg.

It is used in: logistics transport tolls, outdoor areas, internal logistics, mobile platforms, roll containers, elevating platforms and transport carts.

Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.

TWIN-LEX 111: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection for floors and equipment. Ideal for uneven surfaces.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate.Double ball bearing.Wheel Bearings: Ball bearing.

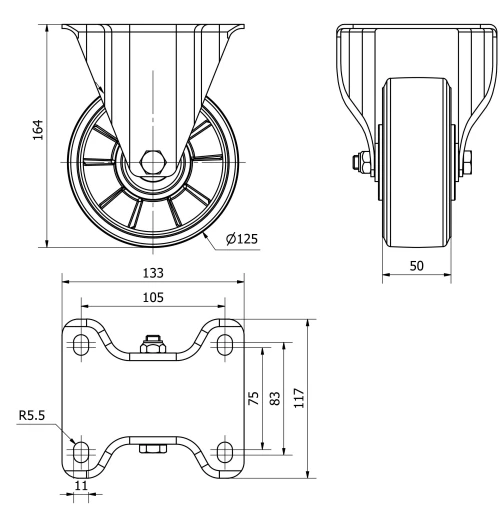

Technical Data TW0149

EAN:

8422202001494

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

133x115

Width x height of stem:

Distance between holes (mm):

105x80/75

Plate hole diameter (mm):

Overall height (mm):

164

Load:

300

Unit Weight of the wheel (kg):

1,6

Volume (cm³):

2552
