120 SERIES-120 TW0029

Code: TW0029

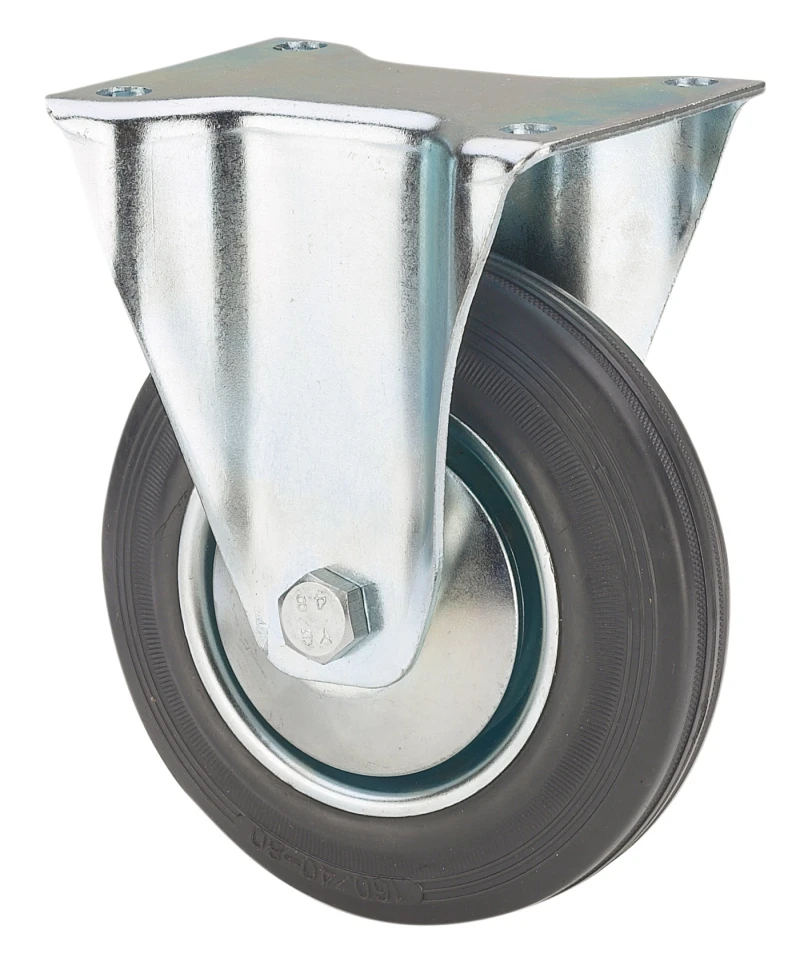

Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 205 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, logistics for military missions material, restaurants, sweeping machines, polishing machines, welding, cement mixers, mobile cranes, trailers, agricultural farms, elevating tables, roll containers and containers.

TWIN-LEX 120: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Pressed steel bracket. Finish: glossy zinc plating. Fitting: plate.Double ball bearing.Wheel Bearings: roller bearing.

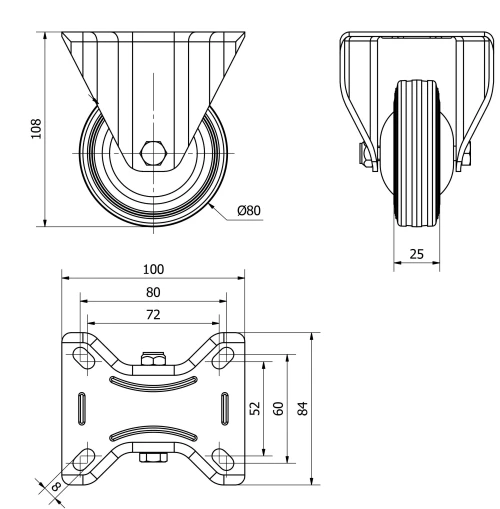

Technical Data TW0029

EAN:

8422202000299

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Roller

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

100x84

Distance between holes (mm):

86x60/72x52

Plate hole diameter (mm):

Overall height (mm):

111

Load:

Unit Weight of the wheel (kg):

0,55

Volume (cm³):

907,2
