120 SERIES-120 TW0031
EAN 8422202000312
Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 205 Kg.
It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, logistics for military missions material, restaurants, sweeping machines, polishing machines, welding, cement mixers, mobile cranes, trailers, agricultural farms, elevating tables, roll containers and containers.
TWIN-LEX 120: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

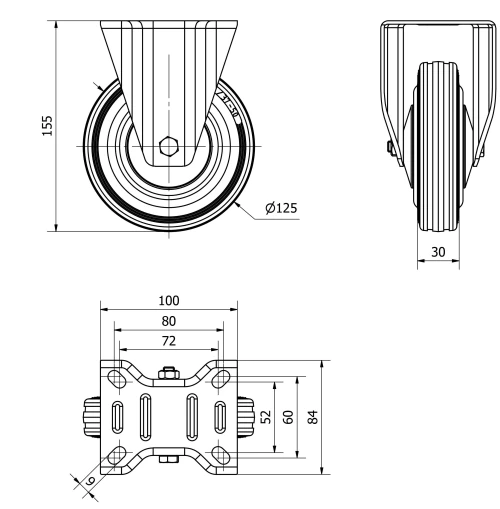

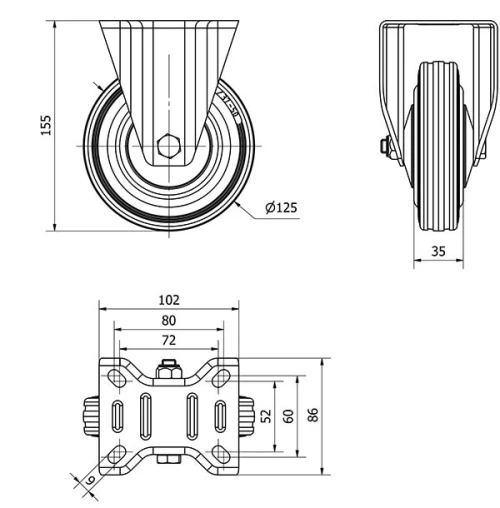

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Roller |
Diameter (mm) | 125 |
Width of tyre (mm) | 37 |
Plate dimensions (mm) | 100x84 |
Distance between holes (mm) | 80x60/72x52 |
Plate hole diameter (mm) | 8 |
Overall height (mm) | 155 |
Load | 120 |
Unit Weight of the wheel (kg) | 1.03 |
Volume (cm3) | 1627.5 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Pressed steel bracket. Finish: glossy zinc plating. Fitting: plate.Double ball bearing.Wheel Bearings: roller bearing.
