121 SERIES-121 TW0040
EAN 8422202000404

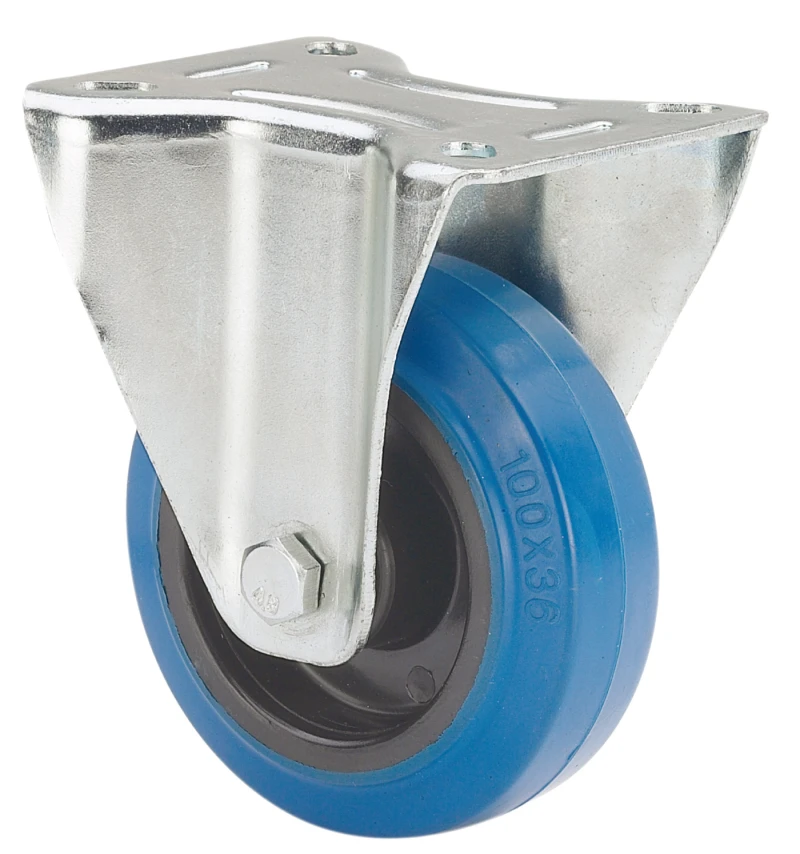

Blue rubber castors. Especially indicated to support high-loads up to 130 Kg.
It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, internal logistics, pneumatics factories, transport tools, food trolleys, kitchen, canteen, dining foom, restaurants, supermarkets, containers, roll containers, transport cages, sound boxes and mobile platforms.
Suitable for mechanical engineering projects by draftsmen and project executors.
TWIN-LEX 121: does not leave marks on floor. High absorption to impacts and vibrations. Smooth and noiseless castors. Elastic.

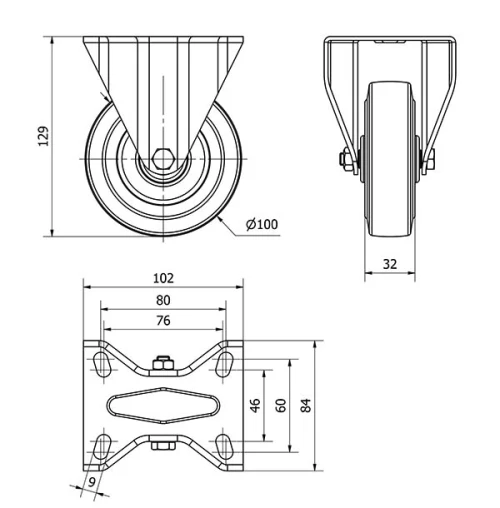

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Roller |
Diameter (mm) | 100 |
Width of tyre (mm) | 30 |
Plate dimensions (mm) | 100x84 |
Distance between holes (mm) | 80x60/72x52 |
Plate hole diameter (mm) | 8 |
Overall height (mm) | 128 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.65 |
Volume (cm3) | 1092 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate.Double ball bearing.Wheel Bearings: roller bearing.
