121 SERIES-121 TW0126

Code: TW0126

Blue rubber castors. Especially indicated to support high-loads up to 130 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, internal logistics, pneumatics factories, transport tools, food trolleys, kitchen, canteen, dining foom, restaurants, supermarkets, containers, roll containers, transport cages, sound boxes and mobile platforms.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 121: does not leave marks on floor. High absorption to impacts and vibrations. Smooth and noiseless castors. Elastic.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate.Double ball bearing.Wheel Bearings: roller bearing.

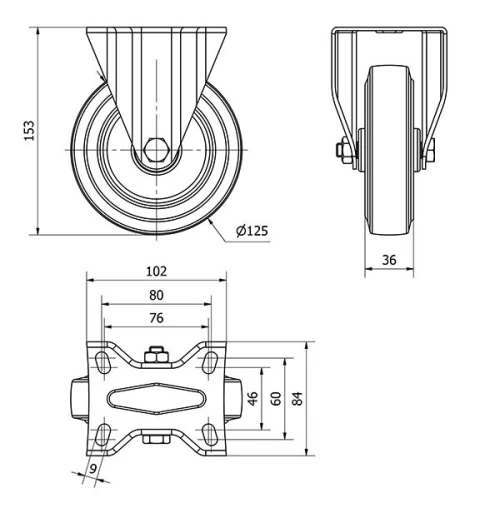

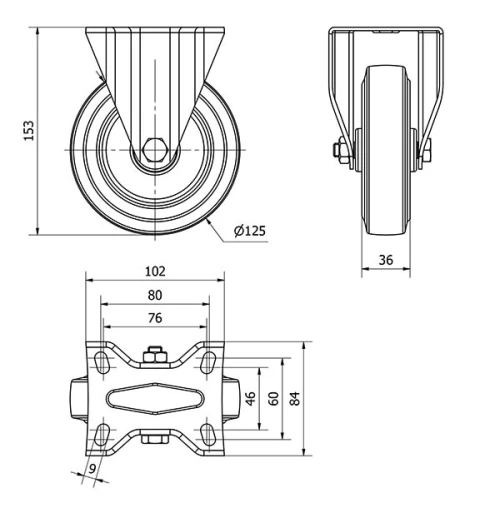

Technical Data TW0126

EAN:

8422202001265

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Roller

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

100x84

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Overall height (mm):

155

Load:

130

Unit Weight of the wheel (kg):

0,8

Volume (cm³):

1627,5

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
