121 SERIES-121 TW0297

Code: TW0297

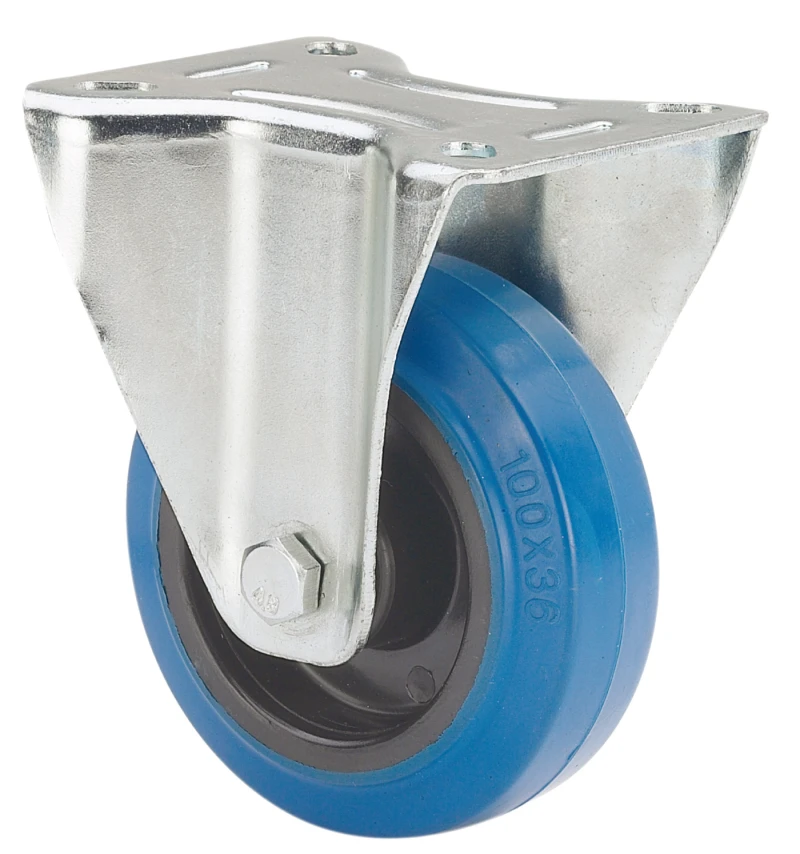

Blue rubber castors. Especially indicated to support high-loads up to 130 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, internal logistics, pneumatics factories, transport tools, food trolleys, kitchen, canteen, dining foom, restaurants, supermarkets, containers, roll containers, transport cages, sound boxes and mobile platforms.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 121: does not leave marks on floor. High absorption to impacts and vibrations. Smooth and noiseless castors. Elastic.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate.Double ball bearing.Wheel Bearings: roller bearing.

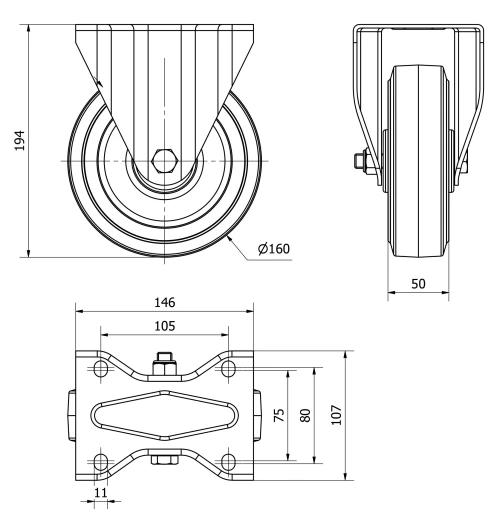

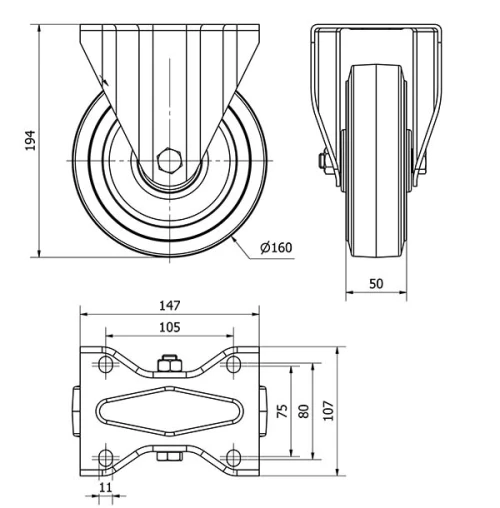

Technical Data TW0297

EAN:

8422202002972

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Roller

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

135x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

197

Load:

250

Unit Weight of the wheel (kg):

1,875
