123 SERIES-123 TW0258

Code: TW0258

Black rubber castors. Especially indicated to support high-loads up to 200 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, logistics for military missions material, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

TWIN-LEX 123: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads

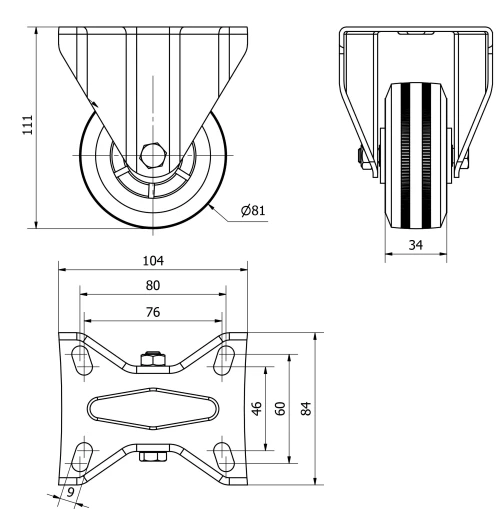

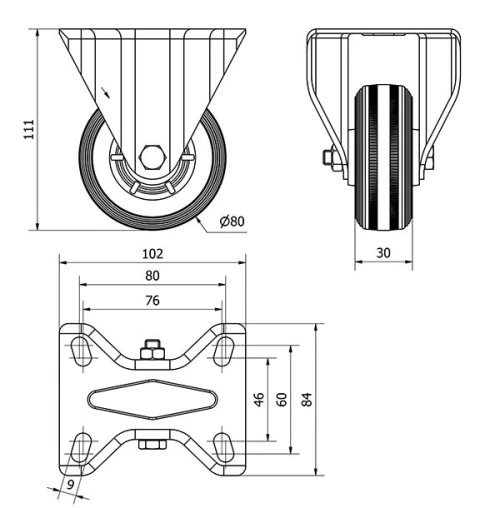

Technical Data TW0258

EAN:

8422202002583

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

100x84

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Overall height (mm):

105

Load:

Unit Weight of the wheel (kg):

0,535

Volume (cm³):

907,2

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

TW0253

TW0263
