123 SERIES-123 TW0266

Code: TW0266

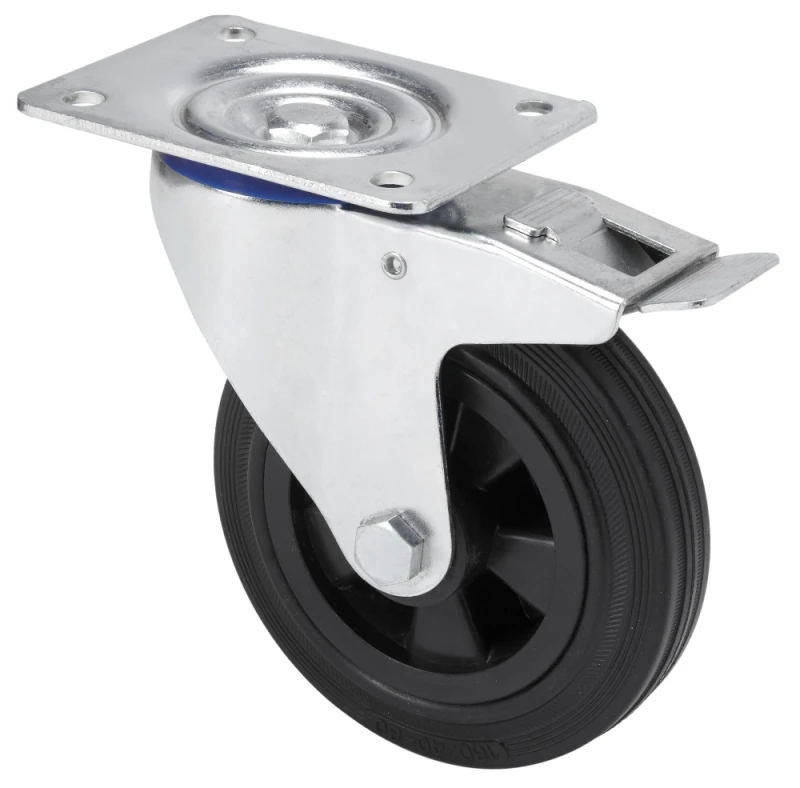

Black rubber castors. Especially indicated to support high-loads up to 200 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, logistics for military missions material, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

TWIN-LEX 123: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads

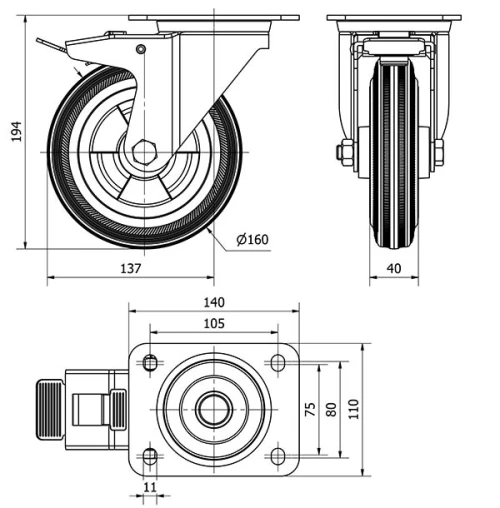

Technical Data TW0266

EAN:

8422202002668

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Bearing:

Plain

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

135x114

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

124

Overall height (mm):

197

Load:

140

Unit Weight of the wheel (kg):

2,335

Volume (cm³):

4300,71
